TSD110B vehicle type communication & bomb signal jamming system. TSD120B, TSD160A & TSD160B portable truncation communication signal device ( IED bomb and explosives signal jammer, wireless / radio bomb jamming device ). TSD80BP backpack type truncation communication signal device ( bomb jamming device ). HPG882 handheld phone & GPS Jammer. VF133S / VF133SA VHF and UHF Jammer, and TSD130V big range truncation communication signal device (bomb jammer) as follows: we can produce jammers of customizable interference frequency band from 20 MHz to 6,000 MHz broadband as per the client's requirements.

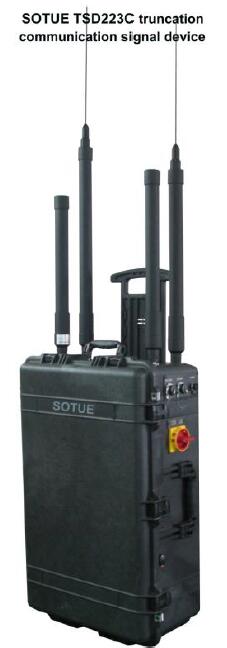

SOTUE TSD223C truncation communication signal device for jamming drone & UAV
SOTUE TSD223C truncation communication signal device is a mobile signal jammer of High power draw-bar box for jamming mobile phone, drone and UAV.
Application:
It is widely used in leadership and VIP security protection, individual combat, SWAT teams, EOD teams, anti-terrorist units, anti-drug units, bomb squad, security checkpoints, administrative law enforcement, hostage negotiations, border control and military security forces etc..
Technical data:
Total power: 800 watts.
Power supply: AC 110V ~ 220V (±10%) / DC-48V.
Power consumption: 2,400W.
Host weight: 60 Kgs.
Host size: 820 mm (L) x 540 mm (W) x 360 mm (H).
Humidity: 30% - 95%. Operating temperature: -10 ℃ to 50 ℃.
Built-in battery: DC-48V 15AH, support full power works for 60 minutes.
When the field strength is -80dBm, the jamming radius is up to 500 meters in an open field.
Feature:
1. The safety box, high pressure resistance, dustproof, moistureproof.
2. Using ultra high frequency broadband interference technology, high effective power (channel power), its interference radius is big.
3. The built-in full band's directional antennas, don't need installation of the antennas, pull it out, can use it immediately, efficient and convenient.
4. The built-in high power battery, in full power, can work for 1 hours. The equipment has an overheating protection function.
Technical standards:
1. Conform to EN 60950 1:2006+A11:2009+A1:2010+A12:2011+A2:2013 product safety international standard. Conform to EN 61326-1:2013 product safety international standards. Conform to EN61000-3-2:2014 and EN61000-3-3:2013 product safety international standards.
2. Conform to EN 61000-6-1:2007 product immunity international standard and radiation conforms to EN 61000-6-3:2007 +A1:2011+AC:2012 product emission international standard.

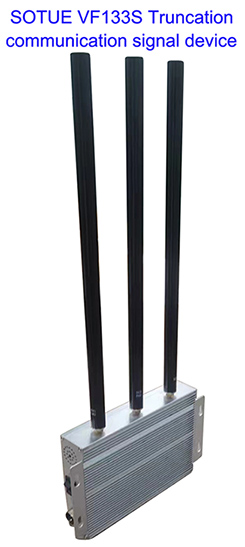

SOTUE VF133S Truncation communication signal device (Portable VHF & UHF Jammer)
Introduction
VF133S portable jammer is a product that jams the signals of remote controls and walkie-talkies, it adopts an aluminum alloy shell with built-in heat dissipation fans and heat exchange fans on both sides, ensuring efficient and stable operation. It is a highly reliable all-weather product. It can also jam and cut off the wireless signals of remote controls and walkie-talkies in order to prevent illegal communications and detonating a bomb & explosives.
Function: It can jam and cut off the signals of wireless remote controls and walkie-talkies.
Technical data:
Jamming VHF & UHF Frequency: 137-174MHz, 300-330MHz and 400-470MHz.
RF output power: each single channel for 30 watts, 3 channels for 90 watts.
Total power: 120 watts.
Jamming range: radius for 50 ~ 100 meters (depend on the signal source).
Battery: 16AH / 22.2V, 3 hours work, rechargeable.
Power supply: AC 110V ~ 220V (±10%), AC-DC charger 6A.
Machine size with built-in battery: 240 mm x 140 mm x 80 mm.
Product antenna: High gain fiberglass antenna.
Antenna length: 300 mm. Weight: about 10 kgs.
Optional:
Machine size without built-in battery: 140 mm x 100 mm x 60 mm.
Additional function: recharged straight by a car cigarette lighter for work.
An outside rechargeable battery: provided by the factory for work. Optionally buy a few batteries sometimes for its long work.
Product antenna: High gain fiberglass antenna.
Antenna length: 300 mm. Weight: about 7 kgs excluding a battery.
Technical standard:
1. Conform to EN60950-1:2006+A11:2009 electrical product safety international standard. Conform to EN55011:2009 & EN61326-1:2006 product safety international standards.
2. Conform to EN61000-3-2:2006+A2:2009 and EN61000-3-3:2008 product safety international standards. Conform to EN61000-6-1:2007 product immunity international standard. Radiation conforms to EN61000-6-3:2007 product emission international standard.

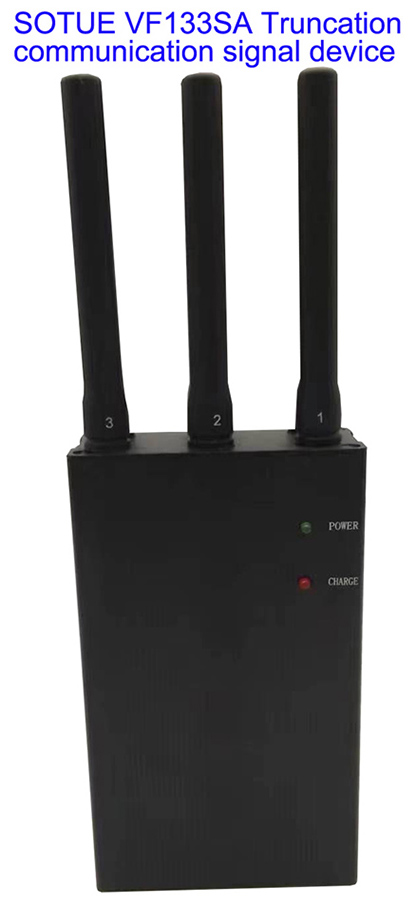

SOTUE VF133SA Truncation communication signal device (Hand-held VHF & UHF Jammer)
Introduction
VF133SA jammer is a product that jams the signals of remote controls and walkie-talkies, it adopts an aluminum alloy shell with built-in heat dissipation fans, ensuring efficient and stable operation. It is a highly reliable all-weather product. It can also jam and cut off the wireless signals of remote controls and walkie-talkies in order to prevent illegal communications & detonating a bomb and explosives.
Function: It can Jam and cut off the signals of wireless remote controls and walkie-talkies.
Technical data:
Jamming VHF & UHF Frequency: 137-174MHz, 312-318MHz and 430-436MHz.
RF output power: each single channel for 5 watts, 3 channels for 15 watts.
Total power: 24 watts.
Jamming range: more than 30 meters radius for Jamming the signals of wireless remote controls (UHF); more than 20 meters radius for Jamming the signals of walkie-talkies (VHF), (depending on the signal source).
Battery: 7.6AH/7. 4V, more than 2 hours work, rechargeable.
Power supply: AC 110V ~ 220V (±10%), AC-DC charger 3A.
Product size: 130 mm x 750 mm x 35 mm.
Antenna: whip antenna.
Weight: about 1.5 Kgs.
Technical standard:
1. Conform to EN60950-1:2006+A11:2009 electrical product safety international standard. Conform to EN55011:2009 & EN61326-1:2006 product safety international standards.
2. Conform to EN61000-3-2:2006+A2:2009 and EN61000-3-3:2008 product safety international standards. Conform to EN61000-6-1:2007 product immunity international standard. Radiation conforms to EN61000-6-3:2007 product emission international standard.
SOTUE TSD110B vehicle type jamming device system (truncation communication signal device, bomb jammer)
Application:
TSD110B device is a high-power escort interference system and is a fully integrated broadband interference system, it can prevent illegal communication and wireless remote detonation of bombs and explosives and prevent information leakage during confidential meetings.
Application areas:
1. The protection of the border communication. Operational needs of war, important large gathering places and mosques.
2. Detention centers, labor camps, prisons, school examination, big speech places, stations and churches.
3. High safety protection demand of VIP's visit. Presidential convoy security protection demand.
Feature:
TSD110B device system can cut off the signals of 3G 4G 5G mobile phones, WIFI, GPS, GLONASS L1, WLAN, Bluetooth and walkie-talkies (walky-talky) within a range of 160 ~ 800 meters.
It can make mobile phones not able to call and receive, can cut off wireless signals and doesn't interfere with other electronic devices' works.
Vehicle type jamming device system, jamming bandwidth and sorts:
Channel 1: Radio controlled toys, phones & Alarms, jamming bandwidth 20 ~ 100 MHz.
Channel 2: Walkie-talkie (VHF), jamming bandwidth 100 ~ 400 MHz.
Channel 3: Walkie-talkie (UHF400), jamming bandwidth 400 ~ 500 MHz.
Channel 4: Walkie-talkie (UHF700/800), TETRA, 4G LTE700, jamming bandwidth 758 ~ 821 MHz.
Channel 5: Cellphone 5G 3500 / 3700, jamming bandwidth 3400 ~ 3800 MHz.
Channel 6: Cellphone GSM900, jamming bandwidth 925 ~ 960 MHz.
Channel 7: Cellphone DCS & PCS, jamming bandwidth 1805 ~ 1990 MHz.
Channel 8: Cellphone UMTS / WCDMA (3G), jamming bandwidth 2110 ~ 2170 MHz.
Channel 9: GPS & GLONASS L1, jamming bandwidth 1520 ~ 1610 MHz.
Channel 10: WLAN & Bluetooth & WiFi 2.4G or 4G 2300, jamming bandwidth 2300 ~ 2500 MHz.
Channel 11: Cellphone 4G LTE 2600, jamming bandwidth 2500 ~ 2690 MHz..
Channel 12: WLAN & Bluetooth & WiFi 5G, jamming bandwidth 5125 ~ 5850 MHz.
Function:
1. Jamming radius for cellphone signal: about 80 ~ 400 meters (it depends on the signal strength in a given area.
2. Jamming radius of VHF / UHF signal: about 80 ~ 300 meters (it depends on the signal strength in a given area.
3. Jamming radius of GPS & GLONASS L1 signals: about 500 ~ 1,500 meters (it depends on the signal strength in a given area.
4. Adopting ultra wideband frequency band design. Optional: we can produce jammers of customizable interference frequency band from 20 MHz to 6,000 MHz broadband as per the client's requirements.
5. 12 modules, used separately for easy replacement and maintenance. Any damage of a module will not interfere with the normal operation of other modules.
6. Suitable for vehicles driving in outdoor environments.
7. The driver can directly operate the system to turn on / off each module or change the output power and frequency range, and can continuously and simultaneously interfere with commonly used RF signals.
8. Intelligent active cooling system ensures continuous operation of equipment.
Technical data:
1. Machine dimension: 980 mm x 720 mm x 465 mm (excluding antennas).
Net weight: 65 kg.
2. Antenna: 12 pcs.
Weight: about 17 kg.
3. 20 ~ 100 MHz NATO flange base with spring antenna:
Length:1,600 mm.
Net weight: 2 Kg.
4. Other NATO flange base with spring antenna:
Length: 850 mm (standard, the length will depend on different countries).
Net weight: 1.5 Kg.
5. Total power: 1,000 W.
6. Working temperature: -30 ℃ ~ 60 ℃.
7. Power supply: AC 110V~ 220V (±10%), AC adapter 50 to 60Hz.
Equipped with a power supply inverter adapter for installation for vehicle. Or use a client's spare power supply such as battery or alternator.
Optional Installation: TSD110B device can be installed on any places, such as vehicle top, mobile objects and fixed places, It is convenient portable. Its installation and operation are simple.
Technical standards:
1. Conform to EN60950-1:2006+A11:2009 electrical product safety international standard. Conform to EN55011:2009 & EN61326-1:2006 product safety international standards.
2. Conform to EN61000-3-2:2006+A2:2009 and EN61000-3-3:2008 product safety international standards. Conform to EN61000-6-1:2007 product immunity international standard. Radiation conforms to EN61000-6-3:2007 product emission international standard.
SOTUE TSD130V big range truncation communication signal device (wireless bomb signal jammer)
TSD130V portable truncation communication signal device is widely used in the security needs of the border, army, wars, prisons, schools, hotels, churches, mosques, big speech places, stations, leaders' visit etc.
Application:
TSD130V portable device can jam and cut off wireless signals of UHF, VHF, mobile phones and other remote control devices in order to prevent illegal communications and detonating a bomb & explosives.
In fact in some occasions, the mobile phones and remote control devices have been used and become a crime tool for the criminals to commit crimes.
Installation: can be installed on any places, such as vehicle, mobile objects, fixed places and so on, Its installation and operation are very simple and easy.
Technical data:
Host size: about 600 mm (L) x 380 mm (W) x 160 mm (H). Power supply: 110V ~ 220V (±10%).
Weight: about 35kg. Environmental temperature: - 40 ℃ to 55 ℃. Relative humidity: ≤ 90% ( RH ).
TSD130V device can jam and cut off wireless signals of UHF, VHF, 3G, 4G, 5G and GPS communications.
Optional: TSD130V device can jam and cut off wireless signals of VHF band frequency, UHF band frequency, CDMA800 band frequency, GSM900 band frequency, DCS / PHS band frequency, TD SCDMA band frequency, CDMA2000 / WCDMA band frequency, 2.4G WI-FI band frequency or 5G signal.
Its effective jamming distance range is 800 meters adjustable.
Optional: Maximum Isolation range: is 1050 meters adjustable ( it depends on the different environmental condition changes ).
Technical standard:
1. Conform to EN60950-1:2006+A11:2009 electrical safety international standard. Conform to EN55011:2009 & EN61326-1:2006 product safety international standards. Conform to EN61000-3-2:2006+A2:2009 & EN61000-3-3:2008 product safety international standards.
2. Conform to EN61000-6-1:2007 product immunity international standard. 3. Conform to EN61000-6-3:2007 product emission international standard.

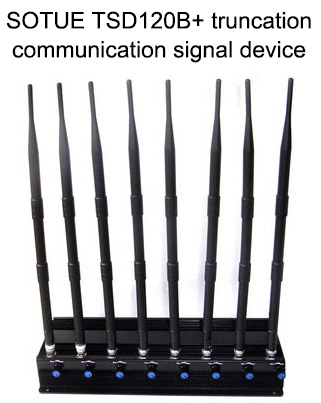

SOTUE TSD120B truncation communication signal device (wireless bomb signal jammer)
TSD120B portable jammer can cut off cell phones' and mobile phones' communications, mobile phones are prohibited for use in some places, it is widely used in some government departments, military and finance departments, command centers, school examination, prisons, meeting, churches, mosques, Leaders' visit for high security protection, President convoy car protection demand etc.
Application:
It can cut off the wireless signals of remote control devices and mobile phones in order to prevent detonating a bomb & explosives and illegal communications. In fact in some occasions, the mobile phones and remote control devices of wireless signals have been used and become a crime tool for criminals to commit crimes.
Installation: It can be installed on mobile objects, fixed places etc., It is convenient portable. Very simple installation and operation.
Functions & Technical data:
1. Its effective isolating and jamming communication signal distance diameter is 45 ~ 50 meters.
2. Power supply: AC 110 ~ 220V (±10%), 12V, optional: car cigarette lighter adaptor in a car for use or 12V rechargeable lead-acid battery adaptor in any places for use.
3. Jamming and Isolating signal frequencies as follows:
3G, 4G, WIFI 2.4G, 5G, GPS. Optional jamming signal: VHF, UHF, LOJACK, 5G signal etc..
4. It can work stably for a long time. Environment temperature: -30℃~ +55℃. Relative humidity:30% ~ 95%. Weight: about 2.9kg
Optional: Cut off 5G or BLUETOOTH communication signals or signals of 18 MHz ~145 MHz frequencies, it can be customized, but you will add another costs.
Technical standard:
1. Conform to EN60950-1:2006+A11:2009 electrical product safety international standard. Conform to EN55011:2009 & EN61326-1:2006 product safety international standards.
2. Conform to EN61000-3-2:2006+A2:2009 and EN61000-3-3:2008 product safety international standards. Conform to EN61000-6-1:2007 product immunity international standard. Radiation conforms to EN61000-6-3:2007 product emission international standard.

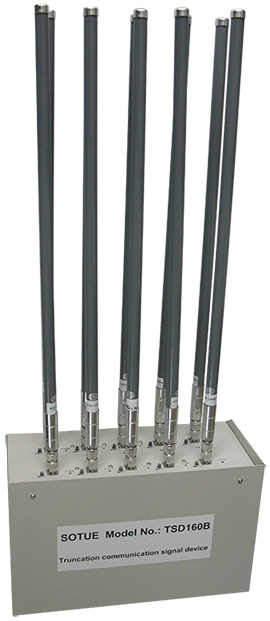

SOTUE TSD160B truncation communication signal device (IED bomb & explosives jamming device)
Application:
TSD160B portable device can jam and cut off the wireless signals of remote control devices, GPS and mobile phones in order to prevent detonating a bomb & explosives and illegal communications, used and installed in some military & government departments, churches, mosques, field battle vehicles, Leaders' visit for high security protection and President convoy car protection etc.
Technical data:
Power supply: AC 110 ~ 220V (±10%), DC 24V, 18A. Weight: about 19 kg. Jamming area diameter: 60 m.
Device size: 440 mm (L) x 270 mm (W) x 220 mm (H). 10 pcs of Antennas. 10 pcs Antennas' weight: 2.0 kgs.
Optional: Antenna connection cables. It can work stably for a long time. Environment temperature: -30℃~ +55℃. Relative humidity: 30% ~ 95%.
Jamming and Isolating signal bandwidths:
TDMA, CDMA, AMPS, NMTP, ETACS, GSM900, 3G, GPS, 4G and 5G.
Optional: Cut off 5G or WIFI or BLUETOOTH or LOJACK / Wimax communication signals, it can be customized, but you will add another costs.
Technical standard:
1. Conform to EN60950-1:2006+A11:2009 electrical product safety international standard. Conform to EN55011: 2009 & EN61326-1:2006 product safety international standards.
2. Conform to EN61000-3-2:2006+A2:2009 and EN61000-3-3:2008 product safety international standards. Conform to EN61000-6-1:2007 product immunity international standard. Radiation conforms to EN61000-6-3:2007 product emission international standard.

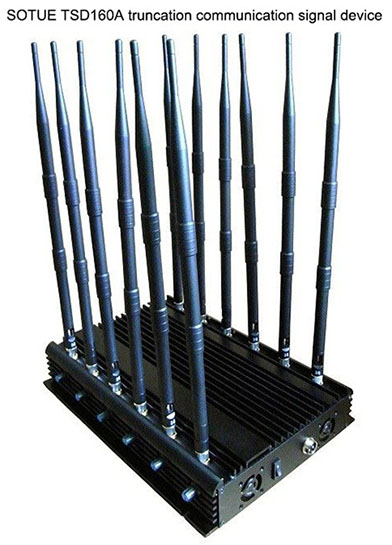

SOTUE TSD160A truncation communication signal device (IED bomb & explosives signal jammer)
TSD160A portable jammer can jam and cut off cell phones' communications and wireless device signals, mobile phones are prohibited for use in some places, it is widely used in some government departments, military and finance departments, command centers, school examination, prisons, meeting, churches, mosques, VIP security protection and President convoy car security protection demand etc.
Application:
It can cut off the wireless signals of remote control devices and cell phones in order to prevent detonating a bomb & explosives and illegal communications. In fact in some occasions, the mobile cell phones and wireless remote control devices have been used and become a crime tool for criminals to commit crimes.
Installation: It can be installed on mobile objects, fixed places etc., It is convenient portable. Simple installation & operation.
Functions & Technical data:
1. Its effective isolating and jamming communication signal distance diameter is 50 ~ 60 meters.
2. Power supply: AC 110 ~ 220V (±10%), 12V, optional: car cigarette lighter adaptor in a car for use or 12V rechargeable lead-acid battery adaptor in any places for use.
3. Jamming and Isolating signal frequencies as follows:
3G, GPS, WIFI 2.4G, VHF, UHF, 4G LTE, 5G, 4G WIMAX and LOJACK.
Optional: jamming 5G or 433 or 315 or 868 or GPS L2.3.4.5 signals for you.
4. It can work stably for a long time. Environment temperature: -30℃~ +55℃. Relative humidity:30% ~ 95%. Weight: about 4.5kg
Optional: If you need to cut off BLUETOOTH communication signals, it can be customized, optional 18 antennas, but you will add another costs.
Technical standard:
1. Conform to EN60950-1:2006+A11:2009 electrical product safety international standard. Conform to EN55011:2009 & EN61326-1:2006 product safety international standards.
2. Conform to EN61000-3-2:2006+A2:2009 and EN61000-3-3:2008 product safety international standards. Conform to EN61000-6-1:2007 product immunity international standard. Radiation conforms to EN61000-6-3:2007 product emission international standard.
SOTUE TSD80BP Backpack type truncation communication signal device (bomb jamming device)
Application
TSD80BP Backpack type truncation communication signal device (wireless / radio bomb jamming device) is widely used in VIP protection, SWAT team, bomb squad, anti-terrorist troop, anti-drug force, anti-riot force, checkpoints, hostage negotiation, border control etc.
TSD80BP jamming device can jam and cut off the signals of 3G 4G 5G mobile phones and WIFI 2.4G. Optionally jamming WIFI 5G, GPS, Bluetooth and walkie-talkies within a range of 15 ~ 100 meters.
Feature:
1. Professional manpack design, It is widely used to jam the signals of mobile phones, remote control bombs and UAV.
2. Total output power: 170W (standard. Optional power 150W, its jamming distance 10 ~ 100 meters), you can choose high gain 5-7 dbi OMNI or Panel directional antennas to jam 15 ~ 100 m (depend on the signal strength).
3. Each unit can jam up to 8 frequency bands simultaneously, each frequency band is separate and can be adjusted in its power from max. to off.
Technical data:
Output Power 170W (standard. Optional power 150W, its jamming distance 10 ~ 100 meters).
Color: Green, grey, black.
Antenna: 8 pieces,
Jamming Radius: 15 ~100 meters (depend on signal strength).
Cooling System: High efficiency aluminum alloy radiator + 4 cooling fans.
Work time: about 70 minutes (standard for power 170W).
Optional use: about 90 minutes (for power 150W, its jamming distance 10 ~ 100 meters).
Build-in AC power supply 220V (±10%), build-in AC adapter for continuous work.
Power Supply: AC 110 ~ 220V (±10%), DC 27V, 20Ah.
Optional: Equipped with a power supply inverter adapter for installation to charge it in the vehicle. Or use a client's spare power supply such as battery or alternator.
Size: 398 mm x 291 mm x 136 mm excluding Antenna.
Weight: appr. 25kg (for OMNI antennas).
Backpack type jamming device, jamming bandwidth & sorts as follows:
Channel 1: Cellphone 4G 700 / 800, jamming bandwidth 738 ~ 821 MHz.
Channel 2: Cellphone GSM900, jamming bandwidth 925 ~ 960 MHz.
Channel 3: Cellphone DCS1800, jamming bandwidth 1805 ~ 1880 MHz.
Channel 4: Cellphone 3G 2100, jamming bandwidth 2110 ~ 2170 MHz.
Channel 5: Cellphone 4G 2300 & WIFI 2.4G, jamming bandwidth 2300 ~ 2485 MHz.
Channel 6: Cellphone 4G 2600, jamming bandwidth 2620 ~ 2690 MHz.
Channel 7: Cellphone 5G 3500, jamming bandwidth 3400 ~ 3600 MHz.
Channel 8: Cellphone 5G 3700, jamming bandwidth 3600 ~ 3800 MHz.
Technical standard:
1. Conform to EN60950-1:2006+A11:2009 electrical product safety international standard. Conform to EN55011: 2009 & EN61326-1:2006 product safety international standards.
2. Conform to EN61000-3-2:2006+A2:2009 and EN61000-3-3:2008 product safety international standards. Conform to EN61000-6-1:2007 product immunity international standard. Radiation conforms to EN61000-6-3:2007 product emission international standard.

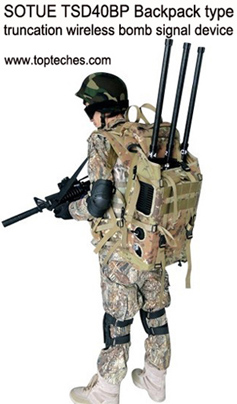

SOTUE TSD40BP Backpack type truncation communication signal device (bomb jamming device)
Application:
SOTUE TSD40BP device can prevent the wireless remote control devices and mobile phones to remote control detonation.
TSD40BP can jam and cut off the wireless signals of remote control devices and mobile phones in order to prevent detonating a bomb & explosives and illegal communications.
In fact in some occasions, the mobile phones and remote control devices of wireless signals have been used and become a crime tool for the criminals to commit crimes.
The army and police departments have widely used TSD40BP in removing explosives or bombs, in order to prevent their explosion.
Application areas:
1. Operational needs of the war. Security needs of mosques, school examination, big speech places, stations, churches and so on.
2. VIP's or Leaders' visit for high security protection demand and President convoy car security protection demand.
Technical data:
1. Jamming frequency range: 4G, 5G, WIFI. Optionally jamming 3G, GPS, VHF, UHF or Bluetooth signals.
2. Host Size: 428 mm (L) x 328 mm (W) x 163 mm (H); Power supply: AC 110 ~ 220V (±10%). Weight: about 15kg. Environmental temperature: ~30℃~ +60℃. Three outer antennas. Power: 80W.
3. Jamming distance: Jamming distance radius is about 40 m. The built-in battery can continuously work for 2 hours after it is full recharged.
Technical standard:
1. Conform to EN60950-1:2006+A11:2009 electrical product safety international standard. Conform to EN55011: 2009 & EN61326-1:2006 product safety international standards.
2. Conform to EN61000-3-2:2006+A2:2009 and EN61000-3-3:2008 product safety international standards. Conform to EN61000-6-1:2007 product immunity international standard. Radiation conforms to EN61000-6-3:2007 product emission international standard.

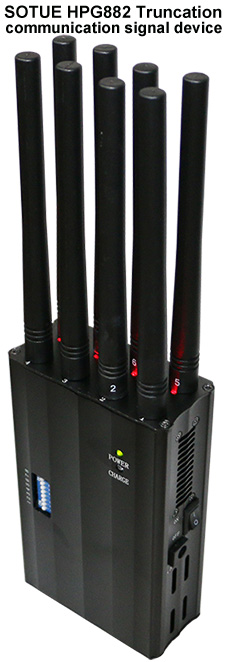

SOTUE HPG882 truncation communication signal device (hand-held phone & GPS signal Jammer)
Application:
HPG882 device can jam and cut off the wireless signals of remote control devices and mobile phones in order to prevent detonating a bomb & explosives and illegal communications, widely used in military & government departments, school examination, meeting, churches, mosques, VIP security protection, President convoy car security protection demand etc..
Feature:
HPG882 device can cut off GPRS, PDC, TDMA, PHS, iDEN, UMTS, 3G, 4G, 5G and GPS signals, it makes the phone not able to call and receive, can cut off wireless signals and doesn't interfere with other electronic devices' works. Optional: jamming WIFI, Bluetooth or 5G signals.
Technical data:
1. Each independent launch (including antenna gain). No harm to the human body. Weight: 400g. Switch: ON / OFF.
2. Its effective jamming distance range is 15 ~ 20 m, it can be put into a pocket or a car for your use.
3. Size: 130 mm (L) x 69 mm (W) x 38 mm (H). Rechargeable battery: 12V, 4500MAH. Power supply: AC 110 ~ 220V (±10%). Output DC: 12V. Multi-function jammer. Optional: Black color.
Technical standard:
1. Conform to EN60950-1:2006 A11:2009 electrical product safety international standard. Conform to EN55011:2009 & EN61326-1:2006 product safety international standards.
2. Conform to EN61000-3-2:2006 A2:2009 and EN61000-3-3:2008 product safety international standards. Conform to EN61000-6-1:2007 product immunity international standard. Radiation conforms to EN61000-6-3:2007 product emission international standard. |
