SOTUE model No. SX332A and SX332D x-ray inspection vehicle and cargo systems as follows:

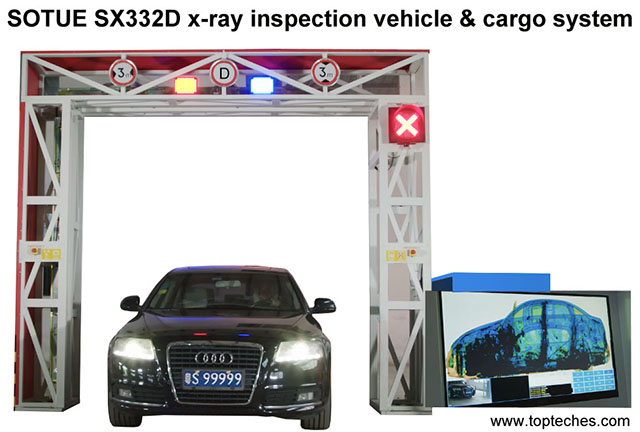

SOTUE SX332D x-ray inspection vehicle & cargo system
Application: SOTUE SX332D system uses an advanced x-ray scanning technology of high penetration and low radiation, can inspect the inside of a vehicle and cargo, and can quickly identify dangerous and threat objects, contraband, explosives, drugs and weapons which are hidden in a vehicle, cargo, baggage and parcel. The whole inspection process will be displayed in real time on the LCD monitor. This system is suitable for small and medium-sized cargo vehicle / truck or medium-sized bus or a car / taxi for rapid security inspection, meanwhile maximumly guarantees the safety of the driver and passenges. It is widely used in airports, train stations, customs, border inspection, important government road security inspection, car park, traffic security checkpoints, military base entrance, big conference site, sport site and so on for security checks, etc. Feature: Scanning vehicle capability: a driver & passengers can stay in their vehicle during scanning process. A driver can drive a vehicle to pass through it. Speed: 1.39 ~ 2.77 m/s. Installation: Small occupied space. Its installation requires a relatively small ground surface without special requirements and another additional infrastructure.
Technical data: Inspection tunnel size: 3.05 m (W) x 3.05 m (H). Scanning speed: 1.39 ~ 2.77 m/s.
![](/en/eWebEdit/UploadFile/20226418056211.jpg) Through-rate: 80~100 vehicles / hour (typical). Penetration power: 45 mm steel (typical), 25 mm steel (application). Wire resolution: Φ1.2 mm copper wire. Absorption dose: <0.2 μSv/scan. Dose rate: public area<0.5μSv, Conform to IAEA standard. Film Safety Guarantee: ASA / ISO1600 Film. Power consumption: Max. 2KVA. Two standard 24" LCD monitors and one monitor console. X-ray Generator (dual energy): X-ray source: 200KV.
Operating Environment: Operation temperature/Humidity: -10℃ ~ 50℃ / 3%-90%(non-condensing) Storage temperature/Humidity; -25℃ to 60℃ / 10%-90%(non-condensing). Supply Power: 220V AC(±10%), 50±3Hz. (Optional: 100V AC,110V AC,120V AC and 200V AC). Optional UPS battery: 30 minutes, 60 minutes, etc. Software function: 1. Login password protection of the operator. 2. The inspected vehicle's information list, data inquiry, information management, images will be displayed in real time and replayed, etc. 3. Image performance system: Image function: colour, black / white. Organic and Inorganic objects: colour images will be displayed. Partial enhancement. Supper enhancement. Negative. Organic Exclusion. Inorganic Exclusion. Add brightness. Reduce darkness. Enlargement / zoom. Colour quality: 24 Bit real colours. Super enhancement: its image detail is more distinct. Enlarging: function of enlargement image. High penetration strength display: increase brightness of dark areas in the image to display an object. Brightening: increase brightness of image, dimming: decrease brightness of image. Image storage: real time to store any image and process it in operation status. Zoom: Image enlargement up to 32 times. Computer: Installation standard hard disk: 500 GB. Standard image storage: 20,000 images, optional: 40,000 images. Display memory capacity: 2.0 GB. Contrast sensitivity: Min. 24 levels. Image Display: Min. 1280 x 1024 bits / pixel, Min. 4096 gray levels. Intel Processor CPU, CPU memory capacity: 2.0 GHz. Optional: Automatic recognition system of the vehicle license plate number, optional: it is able to identify and store the license plate number of each scanned vehicle with the additional camera. Optional installation: vehicle underside video surveillance system according to the client's request. Technical standards: 1. Conform to EN 60950-1:2006+A2:2013 product safety international standard. 2. Conform to EN61000-3-2:2014 and EN61000-3-3:2013 product safety international standards. 3. Conform to FAA 3-gun testing standard.
SOTUE SX332A conveyor type x-ray inspection vehicle and cargo system
Application: SOTUE SX332A system can inspect the inside of any vehicle and cargo, and can quickly and accurately identify dangerous and threat objects, contraband, explosives, drugs and weapons which are hidden in any vehicle, cargo, baggage and parcel. It uses an advanced x-ray scanning technology of high penetration. The whole inspection process will be displayed in real time on the LCD monitor. This system is suitable for small and medium-sized cargo vehicle / truck or medium-sized bus or a car / taxi for rapid security inspection. The system uses the track conveyor structure design. During the inspection, a driver and passengers need to get off the vehicle, the vehicle will be inspected on the track conveyor automatically. After inspection, a driver and passenges can get into a vehicle and leave. It is widely used in airports, train stations, customs, border inspection, important government road security inspection, car park, traffic security checkpoints, military base entrance, big conference site, sport site, etc.. Feature: It can automatically recognise objects, can distinguish organic materials, inorganic materials and impenetrable metals, can help the operator recognises objects quickly.
Technical data: Inspection tunnel size: 3.05 m (W) x 3.05 m (H), it can be customised. Scanning speed: 1.39 ~ 2.77 m/s.
Two installation methods are shown in Figure 1 and Figure 2:
![](/en/eWebEdit/UploadFile/20226418316890.jpg) Picture 1: the installation way above is under the road ground.
![](/en/eWebEdit/UploadFile/20226418818410.jpg)

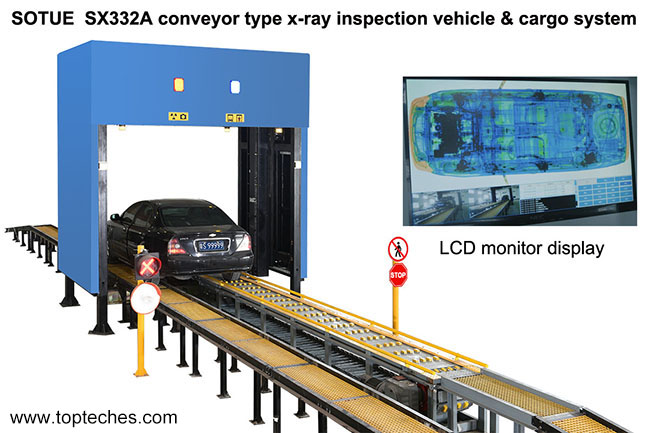

Picture 2: the installation way above is on the road ground.
Through-rate: 100 vehicles / hour (typical). Penetration power: 70 mm steel (typical), 40 mm steel (application). Wire resolution: Φ1.2 mm copper wire. Conform to IAEA standard. Film Safety Guarantee: ASA / ISO1600 Film. Power consumption: Max. 15KVA. Two standard 24" LCD monitors and one monitor console. X-ray Generator (dual energy): X-ray source: 300 KV. Supply Power: 380V AC(±15%), 50 ~ 60Hz (±3Hz). Operating Environment: Operation temperature/Humidity: -10℃ ~ +50℃ / 0%-90%(non-condensing) Storage temperature/Humidity: -25℃ to 60℃ / 10%-90%(non-condensing). Software function: 1. Login password protection of the operator. 2. The inspected vehicle's information list, data inquiry, information management, images will be displayed in real time and replayed, etc. 3. Image performance system: Image function: colour, black / white. Colour images of Organic and Inorganic objects will be displayed. Partial enhancement. Supper enhancement. Negative. Organic Exclusion. Inorganic Exclusion. Add brightness. Reduce darkness. Enlargement / zoom. Colour quality: 24 Bit real colours. Super enhancement: its image detail is more distinct. High penetration power display: increase brightness of dark areas in the image to display an object. Brightening: increase brightness of image, dimming: decrease brightness of image. Image storage: real time to store any image and process it in operation status. Zoom: Image enlargement up to 32 times. Computer: Installation standard hard disk: 500 GB. Standard image storage: 20,000 images, optional: 40,000 images. Display memory capacity: 2.0 GB. Contrast sensitivity: Min. 24 levels. Image Display: Min. 1280 x 1024 bits / pixel, Min. 4096 gray levels. Intel Processor CPU, CPU memory capacity: 2.0 GHz. Optional: Automatic recognition system of the vehicle license plate number, optional: it is able to identify and store the license plate number of each scanned vehicle with the additional camera. Technical standards: 1. Conform to EN 60950-1:2006+A2:2013 product safety international standard. 2. Conform to EN61000-3-2:2014 and EN61000-3-3:2013 product safety international standards. 3. Conform to FAA 3-gun testing standard. |
|
