ATC2031G military Anti-thermal imaging camouflage concealment garment, ATC2032G military Anti-thermal & anti-infrared stealth camouflage garment, SOTUE CG2232G camouflage concealment garment, CG2233C cloak style camouflage concealment garment and BPV119A tactical bulletproof vest as follows:

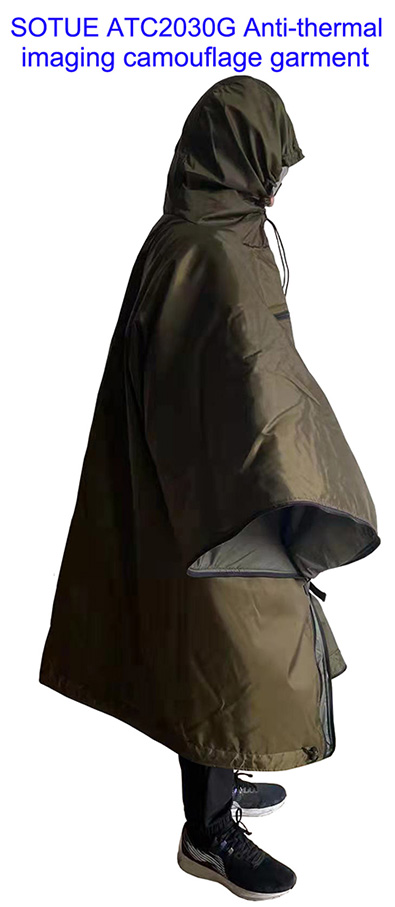

SOTUE ATC2030G Anti-thermal imaging camouflage garment
Application:
SOTUE ATC2030G Anti-thermal imaging concealment garment is a kind of cloak style military Anti-thermal imaging camouflage clothing and widely used in war for camouflage to protect soldiers, VIP persons and leaders to safety.
ATC2030G camouflage concealment garment can block thermal imaging cameras to irradiate its inside persons. Normally now in combat the thermal imaging cameras are used to find enemies because thermal imaging cameras can be installed on UAV, drone, sniper rifle etc. to use or be used in hand by someone independently.
Environmental conditions:
Normal activity temperature: 25 ℃.
Humidity: 65%.
Test equipment:
Observation type infrared thermal imaging camera (imager), its resolution: 640 × 512. It was installed on a UAV flight system to test ATC2030G series cloak style military Anti-thermal imaging camouflage garments.
100 metres far, thermal imaging image as follow:

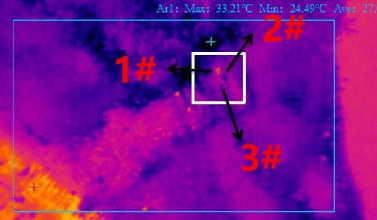

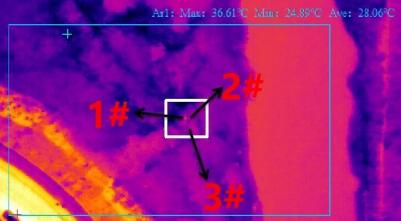

200 metres far, thermal imaging image as follow:

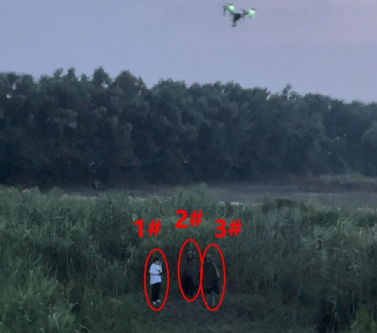

When 2# person and 3# person who are wearing ATC2030G garments are on the position of 200 metres, 2# person and 3# person appear as dark spots, they can be well integrated with the background.

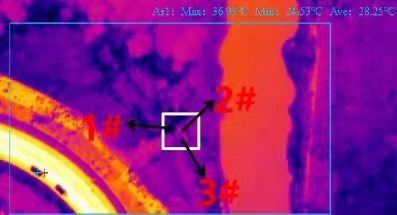

300 metres far, thermal imaging image as follow:
When 2# person and 3# person who are wearing ATC2030G garments are on the position of 300 metres, 2# person and 3# person are well integrated into the background.
400 metres far, thermal imaging image as follow:
When 2# person and 3# person who are wearing ATC2030G garments are on the position of 400 metres, 2# person and 3# person can't be found.
When a person stands up, three standard sizes of anti-thermal imaging camouflage garment are as follows for option:
1. Clothing size: Width 200 cm (optional: 170 cm, 180 cm or 190 cm) x Height 165 cm (including a head hat).
2. Clothing size: Width 200 cm (optional: 170 cm, 180 cm or 190 cm) x Height 175 cm (including a head hat).
3. Clothing size: Width 200 cm (optional: 170 cm, 180 cm or 190 cm) x Height 185 cm (including a head hat).
For example:
1. The height of the garment is 135 cm from the shoulder to human crus (which is a part of the height of the garment), and the height of the hat is 30 cm (which is also a part of the height of the garment).
When a person's hands are stretched out into a straight line, the length is 200 cm (optional: 170 cm, 180 cm or 190 cm).
Clothing size: Width 200 cm (optional: 170 cm, 180 cm or 190 cm) x Height 165 (135 + 30) cm (including a hat).
The garment color and size can be customized according to a client's requirement.
Testing standard:
GB/T 3923.1-2003 (ISO 13934-1:1999)
Breaking strength (BS): 1396 N (Warp direction).
Testing standard:
GB/T 4744-2013 (ISO 811:1981)
Waterproof performance: 40 Kpa.
Feature:
This camouflage clothing fabric has high strength and combines anti-thermal imaging camouflage functions, its performance can fit the wild field work.
Technical standard:
Conform to European Union (EU) REACH Regulation (EC) No 1907 / 2006.

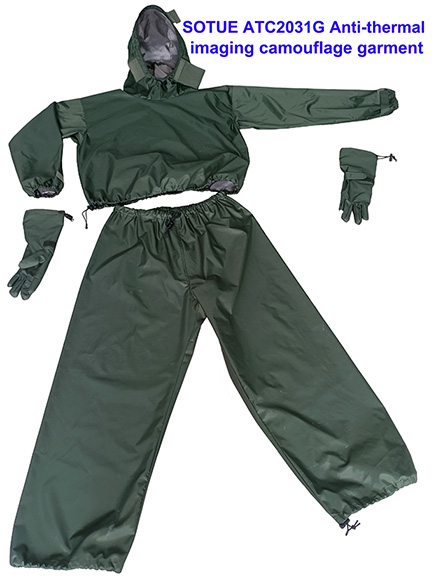

SOTUE ATC2031G Anti-thermal imaging camouflage garment
Application:
SOTUE ATC2031G Anti-thermal imaging concealment garment is a kind of cape style military Anti-thermal imaging concealment camouflage clothing and widely used in war for camouflage to protect soldiers, VIP persons and leaders to safety.
ATC2031G camouflage concealment garment can block thermal imaging cameras to irradiate its inside person. Normally now in combat the thermal imaging cameras are used to find enemies because thermal imaging cameras can be installed on UAV, drone, sniper rifle etc. to use or be used in hand by someone independently.
Environmental conditions:
Normal activity temperature: 25 ℃.
Humidity: 65%.
Test equipment:
Observation type infrared thermal imaging camera (imager), its resolution: 640 × 512. It was installed on a UAV flight system to test ATC2031G series short cape style military Anti-thermal imaging camouflage concealment garments.
Test result:

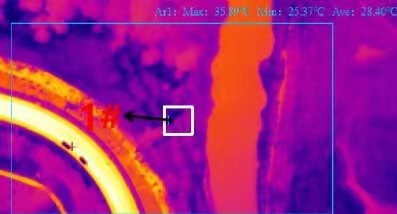

1. When a tested person who is wearing ATC2031G garment is on the position of 40 metres, he or she appears as a dark spot, he or she can be well integrated with the background.
2. When a tested person who is wearing ATC2031G garment is on the position of 45 metres, at this time there is no target in the display screen of thermal imaging imager which is working normally, this person can't be found.
When a person stands up, four standard sizes of anti-thermal imaging camouflage concealment garment are as follows for option:
1. Clothing size (No. 170): it is suitable for a person of 170 cm height to wear including a hat.
2. Clothing size (No. 180): it is suitable for a person of 180 cm height to wear including a hat.
3. Clothing size (No. 190): it is suitable for a person of 190 cm height to wear including a hat.
4. Clothing size (No. 195): it is suitable for a person of 195 cm height to wear including a hat.
The garment color and size can be customized according to a client's requirement.
Testing standard:
GB/T 3923.1-2003 (ISO 13934-1:1999)
Breaking strength (BS): 1396 N (Warp direction).
Testing standard:
GB/T 4744-2013 (ISO 811:1981)
Waterproof performance: 40 Kpa.
Feature:
This camouflage clothing fabric has high strength and combines anti-thermal imaging camouflage functions, its performance can fit the wild field work.
Technical standard:
Conform to European Union (EU) REACH Regulation (EC) No 1907 / 2006.
SOTUE ATC2032G Anti-thermal and anti-infrared stealth camouflage garment
Application:
ATC2032G Anti-thermal imaging and anti-infrared stealth camouflage garments have been widely used in war for camouflage to protect the safety of soldiers, VIPs and leaders. After a person wears it, the probability of optical and infrared equipment detecting humans is reduced, and it has obvious visible light, near-infrared and thermal infrared stealth performance.
The ATC2032G anti-thermal imaging and anti-infrared stealth camouflage garment can achieve the thermal stealth of an individual soldier.
Feature:
1. This product is designed according to conventional clothing, which is easy to wear and has an overall weight equivalent to normal clothing.
2. It has the ability to adapt to thermal radiation temperature: This product has been designed with thermal inertia balance, and can achieve thermal stealth in the scene under jungle, forest or desert backgrounds.
Test as follows:
Above, the test is at the distance of 50 meters.
Technical data:
1. Color: Complies with Chinese military standard.
Color difference: ≤ 3L✱ a✱ b✱.
Gloss: 60 ° mirror gloss ≤ 5 gloss units.
2. Near-infrared protection wave band: 760 ~ 2,500 nm.
Near-infrared K value: The K value of at least one green spot is ≥ 5.
Near-infrared spectral channel: At least one green spot meets the spectral channel requirements of plants, its conformity degree: ≥ 80%.
3. Near UV reflectance: The reflectance at 350 nm of white spots is ≥ 70%.
Whiteness: The Gantz whiteness (10 °) value of white spots is ≥ 90.
4. Thermal infrared protection wave band: 3 ~ 5 μm, 8 ~ 14 μm.
Emissivity: Low emissivity is not exceeding 0.35, medium emissivity is not exceeding 0.55.
5. Flame retardant performance: The self extinguishing effect of the camouflage net decorative fabric should not exceed 10 seconds after leaving the fire.
6. Unit weight: not exceeding 200 g/m².
7. Weight gain after immersion in water: not more than 50 g/m².
8. Environmental temperature: -40 ~ +50 ℃ .
9. Damp heat adaptability: not greater than level 2.
10. Fungal adaptability: not greater than level 1.
11. After 100 hours of accelerated aging test, the color difference between the color and the standard color shall not exceed 3L✱ a✱ b✱.
When a person stands up, five standard sizes of camouflage concealment garment are as follows for option:
1. Garment size (No. 165): it is suitable for a person of 165 cm height to wear including a hat.
2. Garment size (No. 170): it is suitable for a person of 170 cm height to wear including a hat.
3. Garment size (No. 180): it is suitable for a person of 180 cm height to wear including a hat.
4. Garment size (No. 190): it is suitable for a person of 190 cm height to wear including a hat.
5. Garment size (No. 195): it is suitable for a person of 195 cm height to wear including a hat.
Above are the short cape type suit sizes for your option.
Optional: the full cloak type garment sizes including hats for your option as follows:
They are suitable for a person of 165 cm / 170 cm / 175 cm / 180 cm / 185 cm / 190 cm or 195 cm height to wear.
The garment size can be customized according to a client's requirement.
Technical standard:
Conform to European Union (EU) REACH Regulation (EC) No 1907 / 2006.

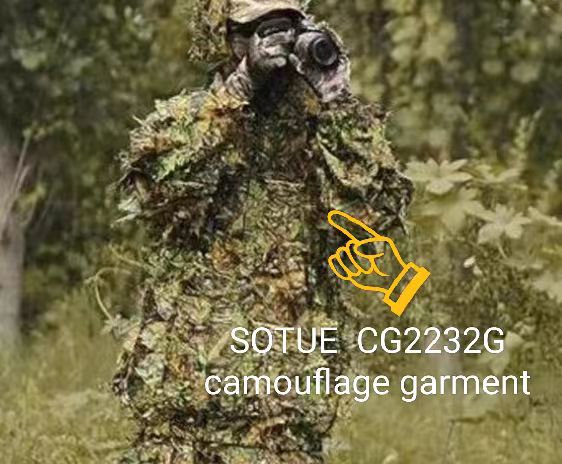

SOTUE CG2232G camouflage concealment garment
Application:
SOTUE CG2232G concealment garment is a kind of military camouflage clothing and widely used in war for camouflage to protect the safety of soldiers, VIP persons and leaders.
Function:
1. Visible light stealth: Its color can match various background colors.
2. Near-infrared stealth: The near-infrared spectral reflectance of camouflage (or spot) is not less than 0.5.
When a person stands up, 4 standard sizes of camouflage concealment garment are as follows for option:
1. Clothing size (165 cm height): it is suitable for a person of 170 cm height to wear including a hat. (No. CG170).
2. Clothing size (170 cm height): it is suitable for a person of 175 cm height to wear including a hat. (No. CG175).
3. Clothing size (175 cm height): it is suitable for a person of 180 cm height to wear including a hat. (No. CG180).
4. Clothing size (185 cm height): it is suitable for a person of 190 cm height to wear including a hat. (No. CG190).
Technical standard:
Conform to European Union (EU) REACH Regulation (EC) No 1907 / 2006.

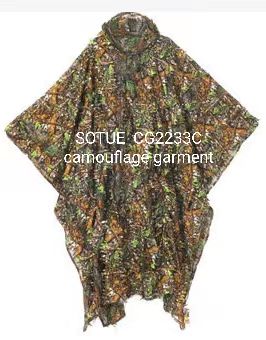

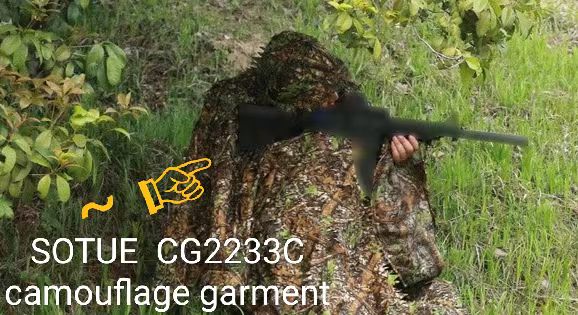

SOTUE CG2233C camouflage concealment garment
Application:
SOTUE CG2233C concealment garment is a kind of cloak style military camouflage clothing and widely used in war for camouflage to protect the safety of soldiers, VIP persons and leaders.
Function:
1. Visible light stealth: Its color can match various background colors.
2. Near-infrared stealth: The near-infrared spectral reflectance of camouflage (or spot) is not less than 0.5.
When a person stands up, 4 standard sizes of camouflage concealment garment are as follows for option:
1. Clothing size (165 cm height): it is suitable for a person of 170 cm height to wear including a hat. (No. 170C).
2. Clothing size (170 cm height): it is suitable for a person of 175 cm height to wear including a hat. (No. 175C).
3. Clothing size (175 cm height): it is suitable for a person of 180 cm height to wear including a hat. (No. 180C).
4. Clothing size (185 cm height): it is suitable for a person of 190 cm height to wear including a hat. (No. 190C).
Technical standard:
Conform to European Union (EU) REACH Regulation (EC) No 1907 / 2006.

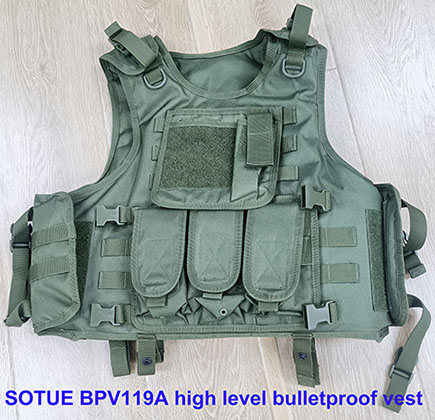

SOTUE BPV119A tactical bulletproof vest
Standard Product Composition: one tactical vest + two soft bulletproof layers + two hard bulletproof insertion plates.
Feature:
1. The tactical vest has flame retardant, drainage, water repellent and
wear-resistant functions. The tactical vest has the cushioning, heat dissipation and breathable structure.
2. The tactical vest has a drag and drop function that meets the emergency needs of the battlefield, and can meet the emergency drag and drop requirements for the treatment of injured personnel.
3. The tactical vest has a quick release function (steel wire rope).
Function:
Bulletproof performance: effectively prevent 7.62mm armor penetration bullet (Strong charge projectile) at a distance of 15 meters with a 3-shot bullet speed of 878 ± 10m/s. The instantaneous concave deformation of each shot is ≤ 35.0 mm. It was tested by the military special equipment company.
The bulletproof insertion plates are mainly used to prevent the penetration of 7.62mm armor Incendiary bullet projectile and effectively protect the protected parts of the human body. BPV119A bulletproof vest is used to protect personnel who is performing combat tasks and is a necessary equipment which an individual soldier in combat state must carry, it is combined with two soft bulletproof layers to use, thus it can enhance the more bulletproof effects.
Bulletproof insertion plate
Technical performance data:
Weight: 3 ± 0.05 kg.
Thickness: ≤ 25 mm.
Surface density: ≤ 37.5 kg/㎡.
Size: 260 mm (width) x 325 mm (height).
Total weight: About 8 kgs.
Applicable guns and bullets, above, it effectively prevents 7.62mm bullets fired from the 7.62mm sniper rifle, and it can also prevent type 53 armor piercing incendiary and 79 type micro impact firing 7.62mm lead core bullets.
Anti-puncture performance: GA 68-2019 Class A, defence D1 knife tool ≥ 24J.
Technical standard:
Conform to European Union (EU) REACH Regulation (EC) No 1907 / 2006.
Welcome to take a sample for test, please contact us. |
