Luggage x-ray machine, x-ray cargo scanner, x-ray inspection pallet cargo & parcel system

Model SX100S, SX100SA and SX150A conveyor type x-ray inspection baggage, parcel and pallet cargo systems as follows: SX100S inspection tunnel size: 1000 mm Width × 800 mm Height; SX100SA inspection tunnel size: 1010 mm Width × 1000 mm Height; SX150A scan pallet cargo system's inspection tunnel size: 1500 mm Width × 1800 mm Height, can transport the largest air cargo pallets for security inspection

                         SX100S conveyor type x-ray screening inspection baggage & cargo system

Application:
SOTUE SX100S tunnel type x-ray inspection baggage and parcel system is used for explosives and suspicious dangerous goods inspection, can be installed in airports, bus & train stations and so on for inspection, widely used in airports, bus and train stations, troops, public security, armed police, Customs, postal parcel inspection and other security departments for security checks, etc.. SX100S products have been exported to Iraq, Spain, Nepal, Congo, Iran, Syria, Libya, Russia, India, Indonesia, Georgia, Turkey, Barbados, Uzbekistan, Laos, Philippines, Oman, Slovenia, Croatia, Switzerland, Romania, United Kingdom, Luxemburg, Moldova, Sweden, Bolivia, Brazil, Italy, Canada, Columbia, Algeria, Morocco and so on for local clients' uses. We have provided design & OEM production for some customers in Japan, the United States and Europe for many years.

Technical data:
Inspection tunnel size: 1000 mm (W) × 800 mm (H), conveyor speed: 0.22 m / s, conveyor maximum load: 220 Kg. Noise: < 60DB. Wire resolution: Φ 0.1 mm metal wire. Film safety: for ISO 1600. Storage temperature: -20 ºC to 60 ºC. Operating temperature: 0 ºC to 45 ºC. Power consumption: maximum 1.0 KVA. Relative humidity: 10 to 95% non-condensing. Power supply: 110V ~ 220 VAC (±10%), 50±3Hz. IP55. Penetration capacity: 32 ~ 34 mm steel plate, resolution: 38 AWG. Optional: penetration capacity: 38 mm steel plate, resolution: 38 ~ 40 AWG. Optional: Input conveying length: 1000 mm; exit / output conveying length: 2500 mm.

Feature:
1. Use the standards as references, when the machine inspects the goods and finds that there are differences, then it will give out     a sound and light alert. Two standard 19" monitors and one monitor console.
2. Optional: Network interface, it can connect local area networks and support multi-terminal inspection baggage simultaneously.
3. Safer ray: x-ray under automatic control to avoid the leakage. 4. Turn off or turn on by a key control, its operation is very simple.
5. Image function: can clearly observe and enlarge images. Threat Image Projection (TIP) / display: such as, guns, knives, bullets, bombs, pistols and so on. Work status display. It is a most widely used system for Aviation Checkpoint and provides outstanding threat detection. Density Threshold Alert (DTA) security feature. Language version: English or French.
6. Automatic checking and recovery function. Date and time display. Luggage count. Emergency stop.

X-ray generator:
Orientation: vertically upward. Tube current: 0.5 ~ 1.2 mA ( adjustable ). Anode voltage: 140 ~ 160 KV ( optional: 160 KV - 200 KV ). Angle: 80 degrees. Generator Cooling / Working periods: sealed oil bath with forced air of 100%. High penetration power to all metals. Optional: SX100S dual view system.

Image performance system:
X-ray sensor: L type photo-diode array detector, 16 Bit. Two high resolution 19” LCD dual monitors. Color quality: 24 Bit real colors. Edge enhancement: object contour edge is more distinct, and super image enhancement: image detail is more distinct. Enlarging: function of enlargement image, and high penetration strength display: increase brightness of dark areas in the image to display an object. Low penetration strength display:increase the contrast to display it distinctly. Brightening / dimming: increase brightness of image / decrease brightness of image. Image recurrence: can display previous twenty images and process any one of them. Image restoration: restore an image to initial status at the time of stopping the conveyor. Image storage: real time to store any image and process it in operation status.

Zoom: enlargement Image to 32 times, optional 64 times. Standard storage image: 50,000 images, optional 100,000 images. Installation standard hard disk: 500 GB. Display memory capacity: 2.0 GB. Processor CPU: Intel Celeron, optional CPU: ARM Cortex A9. Contrast sensitivity: Min. 24 levels. Image display: Min. 1280 x 1024 bits/pixel, Min. 4096 gray levels. Cycle operation: 100% without warm-up time.

Multi-energy function:
1. Multi-energy color: display organic material for orange, display inorganic material for blue and display mixture material for green.
2. High energy / low energy: it displays two energy types, high energy stands for metal etc. and low energy stands for nonmetallic. Assistant inspection functions of drugs and explosives: help to detect such dangerous material as drugs and explosives, etc..

Technical standards:
1. Conform to EN 60950-1:2006+A2:2013 product safety international standard.  2. Conform to EN 61010-1:2010 product safety international standards.  3. Conform to EN55011:2016 product safety international standard, conform to EN61000-6-2:2005 product immunity international standard.  4. Conform to EN61000-3-2:2014 and EN61000-3-3:2013 product safety international standards.
5. European CE and EMC international security standard certificates. Conform to FAA 3-gun testing standards and NILECJ-0601-00 safety standards. Conform to ECAC international security standard and Transportation Security Administration (TSA) standard

                         SX100SA conveyor type x-ray screening inspection baggage & cargo system

Application:
SOTUE SX100SA tunnel type x-ray inspection baggage and parcel system is used for explosives & suspicious dangerous goods inspection, can be installed in airports, bus & train stations and so on for inspection, widely used in airports, bus and train stations, troops, public security, armed police, Customs, postal parcel inspection and other security departments for security checks, etc.. SX100SA products have been exported to Kazakhstan, Turkmenistan, Kampuchea, Malaysia, Qatar, France, United Arab Emirates, Tajikistan, Germany, Ireland, San Marino, Hungary, Croatia, Greece, Lithuania, Latvia, Nicaragua, Saint Lucia, Panama and so on for local clients' uses. We have provided design & OEM production for some customers in Japan, the United States and Europe.

Feature:
1. Use the standards as references, when the machine inspects the goods and finds that there are differences, then it will give out an alert. Two standard 19" monitors and one monitor console.
2. Optional: network interface, it can connect local area networks and support multi-terminal inspection baggage simultaneously.
3. Safer ray: x-ray under automatic control to avoid the leakage. 4. Turn off or turn on by a key control, its operation is very simple.
5. Image function: can clearly observe and enlarge images. Threat Image Projection (TIP) / display, such as: guns, knives, bullets, bombs, pistols and so on. Work status display. It is a most widely used system for Aviation Checkpoint and provides outstanding threat detection. Density Threshold Alert (DTA) security feature. Optional: network monitoring. Language version: English or French.
6. Automatic checking and recovery function. Date and time display. Luggage count. Emergency stop. IP55.

Technical data:
Inspection tunnel size: 1005 mm (W) × 1005 mm (H), conveyor speed: 0.22 m / s, conveyor maximum load: 230 Kg. Noise:< 60DB. Wire resolution: Φ 0.1 mm metal wire. Film safety: for ISO 1600. Storage temperature: -20 ºC to 60 ºC. Operating temperature: 0 ºC to 45 ºC. Power consumption: maximum 1.2 KVA. Relative humidity: 10 to 95% non-condensing. Power supply: 110V ~ 220 VAC (±15%), 50±3Hz. Penetration capacity: 32 ~ 34 mm steel plate. Resolution: 38 ~ 40 AWG. Optional: resolution: 40 AWG, penetration steel capacity: 38 mm. Optional: Input conveying length: 1000 mm; exit / output conveying length: 2500 mm.

X-ray generator:
Orientation: vertically downward. Tube current: 0.5 ~ 1.2 mA (adjustable). Angle: 80 degrees. Anode voltage: 160 KV, optional: 160 ~ 180 KV (adjustable). Generator Cooling / Working periods: sealed oil bath with forced air of 100%. High penetration power to all metals. Optional: SX100SA dual view system.

Image performance system:
X-ray sensor: L type photo-diode array detector, 16 Bit. Two high resolution 19” LCD dual monitors. Color quality: 24 Bit real colors. Edge enhancement: object contour edge is more distinct, and super image enhancement: image detail is more distinct. Enlarging: function of enlargement image, and high penetration strength display: increase brightness of dark areas in the image to display an object. Low penetration strength display:increase the contrast to display it distinctly. Brightening / dimming: increase brightness of image / decrease brightness of image. Image recurrence: can display previous twenty images and process any one of them. Image restoration: restore an image to initial status at the time of stopping the conveyor. Image storing: real time to store any image and process it in operation status.

Zoom: Standard enlargement image to 32 times, optional: 64 times. Standard storage image: 50,000 images, optional: 100,000 images. Installation standard hard disk: 500 GB. Display memory capacity: 2.0 GB. Contrast sensitivity: Min. 24 levels. Image display: Min. 1280 x 1024 bits/pixel, Min. 4096 gray levels. Cycle operation: 100% without warm-up time. Processor CPU: Intel Pentium, optional CPU: ARM Cortex A9.

Multi-energy function:
1. Multi-energy color: display organic material for orange, display inorganic material for blue and display mixture material for green.
2. High energy / low energy: it displays two energy types, high energy stands for metal etc. and low energy stands for nonmetallic. Assistant inspection functions of drugs and explosives: help to detect such dangerous material as drugs and explosives, etc..

Technical standards:
1. Conform to EN 60950-1:2006+A2:2013 product safety international standard.  2. Conform to EN 61010-1:2010 product safety international standards.  3. Conform to EN55011:2016 product safety international standard, conform to EN61000-6-2:2005 product immunity international standard.  4. Conform to EN61000-3-2:2014 and EN61000-3-3:2013 product safety international standards.
5. European CE and EMC international security standard certificates. Conform to FAA 3-gun testing standards and NILECJ-0601-00 safety standards. Conform to ECAC international security standard and Transportation Security Administration (TSA) standard

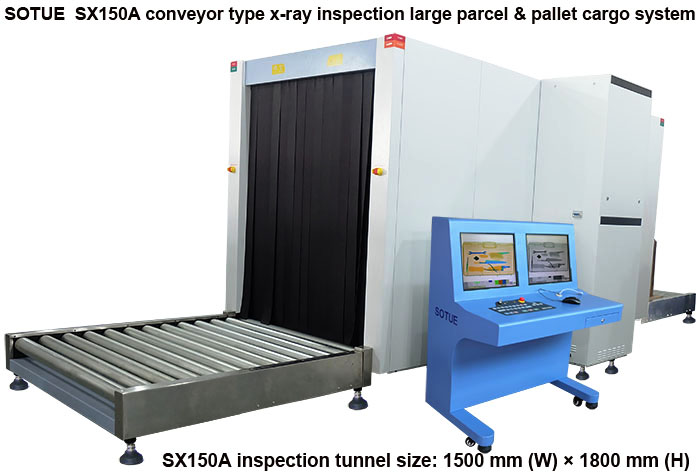

                          SX150A conveyor type x-ray inspection large parcel & pallet cargo system

Application:
SOTUE SX150A tunnel type x-ray inspection large parcel & cargo system is used for explosives and suspicious dangerous goods inspection, widely used in airports, bus and train stations, Customs, postal parcel inspection, logistics transportation companies, Express companies and other security departments for security checks, etc.. SX150A products have been exported to Switzerland, Georgia, Romania, Russia, the United Kingdom, Brazil, Italy, Canada, France, Spain and so on for local clients' uses. We have provided design and OEM production for some customers in Japan, the United States and Europe.

Feature:
1. Use the standards as references, when the machine inspects the goods and finds that there are similar goods, then it will give out a red alarm mark. Two standard 19" monitors and one monitor console.
2. Optional: Network interface, it can connect local area network and support multi-terminal inspection baggage simultaneously.
3. Safer ray: x-ray under automatic control to avoid the leakage. 4. Turn off or turn on by a key control, its operation is very simple.
5. Image function: can clearly observe and enlarge images. Threat Image Projection (TIP) / display: such as guns, knives, bullets, bombs, pistols and so on. Work status display. It is a most widely used system for Aviation Checkpoint and provides outstanding threat detection. Density Threshold Alert (DTA) security feature. Language version: English or French.
6. Automatic checking and recovery function. Date and time display. Luggage count. Emergency stop. IP55.

Technical data:
Inspection tunnel size: 1500 mm (W) × 1800 mm (H). Conveyor speed: 0.22 m / s. Conveyor maximum load: 2000 Kg. Film safety: for ASA / ISO 1600. Wire resolution: Φ 0.1 mm copper wire, Resolution: 38 AWG. Noise: < 62 DB. Storage temperature: -20 ºC to 60 ºC. Relative humidity: 10% to 90% non-condensing. Operating temperature: 0 ºC to 45 ºC. Max. power consumption: 2.0 KW. Power supply: 110V ~ 220 V (±10%), 50±3Hz. Penetration steel capacity: 32 ~ 34 mm steel plate. Optional: Input conveying length: 2500 mm; exit / output conveying length: 2500 mm.

SX150A system's inspection tunnel size: 1500 mm Width × 1800 mm Height, it can transport the largest air cargo pallets which load the goods for security inspection.

X-ray generator:
Orientation: vertically upward. Tube current: 0.6 ~ 1.2 mA ( adjustable ).  Anode voltage: 160 KV ( optional or adjustable ). Generator Cooling / Working periods: sealed oil bath with forced air of 100%. High penetration power to all metals. Optional: SX150A dual view system.

Image performance system:
X-ray sensor: L type photo-diode array detector,12 Bit. High resolution two 19” display monitors. Colour quality: 24 Bit real colours. Edge enhancement: object contour edge is more distinct and super image enhancement:its image detail is more distinct. Enlarging: function of enlargement image, high penetration strength display:increase brightness of dark areas in the image to display an object. Low penetration strength display:increase the contrast to display it distinctly. Brightening / dimming: increase brightness of image / decrease brightness of image. Image recurrence: display previous thirty images and process any one of them. Image restoration: restore an image to initial status at the time of stopping the conveyor. Image storing: real time to store any image and process it in operation status.

Zoom: Image enlargement up to 32 times. Installation standard hard disk: 500 GB. Standard image storage: 50,000 images, optional: 100,000 images. Display memory capacity: 2.0 GB. Contrast sensitivity: Min. 24 levels. Image Display: Min. 1280 x 1024 bits / pixel, Min. 4096 gray levels. Intel Processor CPU, CPU memory capacity: 2.0 GHz.

Multi-energy function:
1. Multi-energy color: display organic material for orange, display inorganic material for blue and display mixture material for green.
2. High energy / low energy: it displays two energy types, high energy stands for metal etc. and low energy stands for nonmetallic. Assistant inspection functions of drugs and explosives: help to detect such dangerous materials as drugs and explosives, etc..

Technical standards:
1. Conform to EN 60950-1:2006+A2:2013 product safety international standard.  2. Conform to EN 61010-1:2010 product safety international standards.  3. Conform to EN55011:2016 product safety international standard, conform to EN61000-6-2:2005 product immunity international standard.  4. Conform to EN61000-3-2:2014 and EN61000-3-3:2013 product safety international standards.
5. European CE and EMC international security standard certificates. Conform to FAA 3-gun testing standards and NILECJ-0601-00 safety standards. Conform to ECAC international security standard and Transportation Security Administration (TSA) standard.
