SX90A x-ray inspection system tunnel size: 600 mm (W) × 400 mm (H) and SX38BS x-ray inspection system tunnel size: 500 mm (W) × 300 mm (H) as follows:

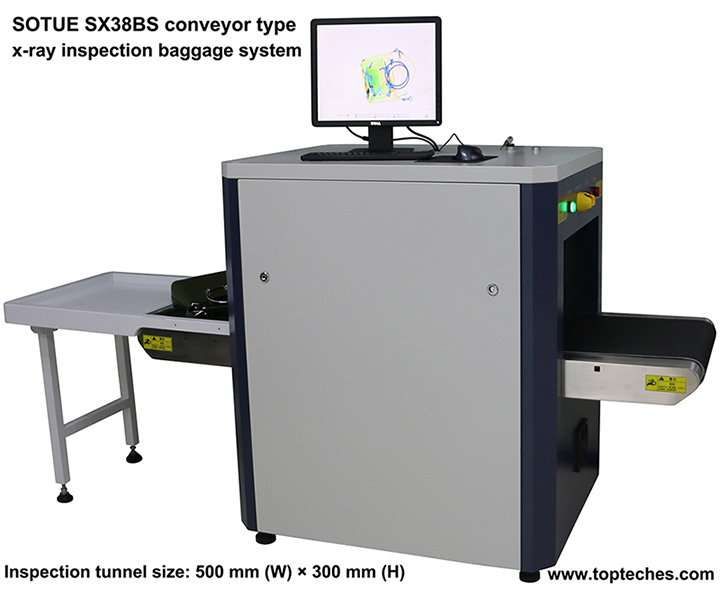

SX38BS conveyor type x-ray inspection baggage & parcel system
Application: SOTUE SX38BS tunnel conveyor type x-ray inspection baggage & parcel system is used for explosives and suspicious dangerous goods inspection, can be installed in airports, police cars, helicopters, courts, prisons, embassies and so on for security inspection, widely used in banks, stadiums, churches, lecture halls, hotels, casinos, courts, prisons, embassies, power plants, military bases, factory, exhibition, postal parcel inspection and other security departments for security checks and so on.
SX38BS products have been exported to Finland, Mexico, Russia, Brazil, South Africa, Italy, Afghanistan, India, Mongolia, Saudi Arabia, Armenia, Bahrain, Pakistan, Syria, singapore, Macedonia, Albania, Iraq and so on for local clients' uses. We have provided design & OEM production for some customers in Japan, the United States and Europe for more than 15 years.
Technical data: Inspection tunnel size: 500 mm (W) × 300 mm (H), optional: 560 mm (W) x 360 mm (H). Conveyor speed: 0.22 m / s. Conveyor load: 90 Kg. Wire resolution: Φ 0.1 mm copper wire. Resolution: 38 AWG. Penetration capacity: 30 mm steel plate, optional: 42 AWG, penetration capacity: 40 mm steel plate. Film safety: for ISO 1600. Relative humidity: +10 to 95% non-condensing. Storage temperature: -20 ºC to 60 ºC. Operating temperature: 0 ºC to 45 ºC. Power wastage: 800 W ( maximum ). Noise: < 58 DB. Power supply: 110V ~ 220 VAC (±10%), 50±3Hz. Dual energy detection.
![](/en/eWebEdit/UploadFile/20174715125870.jpg)
Feature: 1. Use the standards as references, when the machine inspects the goods and finds that there are differences, then it will give out a sound and light alert. Monitor: One 19" color monitor. Optional: two 19" color monitors and one monitor console. 2. Optional: Network interface, it can connect local area networks and support multi-terminal inspection baggage simultaneously. Optional: the LCD monitor can be folded and 360 degree rotary operation. Density Threshold Alert (DTA). 3. Safer ray: x-ray under automatic control to avoid the leakage. 4. Turn off or turn on by a key control, its operation is very simple. 5. Image function: can clearly observe and enlarge images. Threat Image Projection (TIP) / display: such as, guns, knives, bullets, bombs, pistols and so on. Work status display. Image thumbnail display. It can provide outstanding threat detection. 6. Automatic checking and recovery function. Date and time display. Password control. Luggage count. Emergency stop. Language version: English or French.
X-ray generator: Orientation: vertically upward. Tube current: 0.5 ~ 1.2 mA ( adjustable ). Anode voltage: 140 ~ 160 KV ( optional or adjustable ). Angle: 80 degree. Generator Cooling / Working periods: sealed oil bath with forced air of 100%. High penetration power to all metals. Optional: SX38BS dual view system.
Image performance system: X-ray sensor: L type photo-diode array detector, 16 Bit. High resolution 19" color LCD monitor, and color quality: 24 Bit real colors. Edge enhancement: object contour edge is more distinct and super image enhancement: image is more distinct. High penetration strength display:can increase brightness of dark areas in the image to display an object, low penetration strength display: increase the contrast to display it distinctly. Brightening / dimming: can increase brightness of image / decrease brightness of image. Image recurrence: can display previous twenty images and process any one of them. Image restoration: restore an image to initial status at the time of stopping the conveyor. Image storage: it's real time to store any image and process it in the operation status.
Zoom: image enlargement to 32 times, optional 64 times. Standard storage image: 50,000 images, optional: 100,000 images. Installation standard hard disk: 500 GB. Display memory capacity: 2.0 GB. Contrast sensitivity: Min. 24 levels. Image display: Min. 1280 x 1024 bits / pixel and Min. 4096 gray levels. Cycle operation: 100% without warm-up time. Processor CPU: Intel Celeron, optional CPU: ARM Cortex A9.
Multi-energy function: 1. Multi-energy color: display organic material for orange, display inorganic material for blue and display mixture material for green 2. High energy / low energy: it can display two energy type, high energy stands for metal etc. & low energy stands for nonmetallic. Assistant inspection functions of drugs and explosives: help to detect such dangerous materials as drugs and explosives, etc.
Technical standards: 1. Conform to EN 60950-1:2006+A2:2013 product safety international standard. 2. Conform to EN 61010-1:2010 product safety international standards. 3. Conform to EN55011:2016 product safety international standard, conform to EN61000-6-2:2005 product immunity international standard. 4. Conform to EN61000-3-2:2014 and EN61000-3-3:2013 product safety international standards. 5. European CE and EMC international security standard certificates. Conform to FAA 3-gun testing standards and NILECJ-0601-00 safety standards. Conform to ECAC international security standard and Transportation Security Administration (TSA) standard.

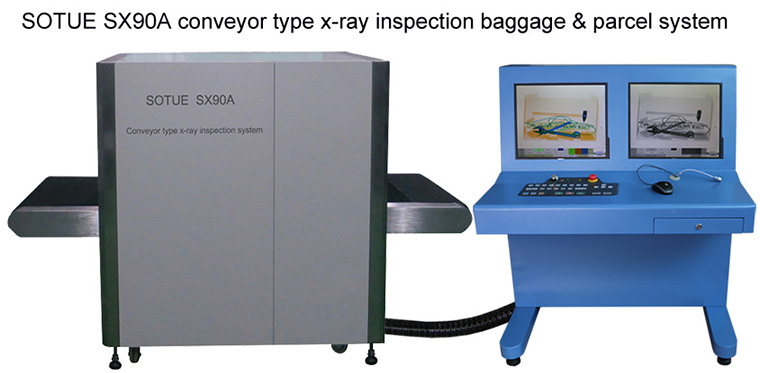

SX90A conveyor type x-ray inspection baggage & parcel system Application: SOTUE model No. SX90A tunnel conveyor belt type x-ray inspection baggage and parcel system is widely used for explosives and suspicious dangerous goods inspection, it can widely be installed and used in airports, bus and train stations, embassies, stadiums, public security, casino, courts, prisons, mosques, churches, checkpoints, Customs, postal parcel inspection & security departments for security check and so on.
SX90A products have been exported to Angola, Zimbabwe, Malawi, Mozambique, Botswana, Namibia, Swaziland, South Africa, Zambia, Australia, New Zealand, Peru, Uruguay, Paraguay, Suriname, Holland, Portugal, Iraq, Azerbaijan, Israel, Burma, Bangladesh and so on for local clients' uses. We provide design and OEM production for some customers in Japan, the United States and Europe.
Feature: 1. Use the standards as references, when the machine inspects the goods and finds that there are differences, then it will give out a sound and light alert. Monitor: One 19" color monitor. Optional: two 19" color monitors and one monitor console. 2. Optional: network interface, it can connect local area networks and support multi-terminal inspection baggage simultaneously. 3. Safer ray: x-ray under automatic control to avoid the leakage. Turn off or turn on by a key control, its operation is very simple. 4. Image function: can clearly observe and enlarge images. Threat Image Projection (TIP) / display: such as guns, knives, bullets, bombs, pistols and so on. Work status display. It is a most widely used system for Aviation Checkpoint and provides outstanding threat detection. Language version: English or French. 5. Automatic checking and recovery function. Date and time display. Password control. Luggage count. Emergency stop. 6. Key board: have programmable keys. Imaging: color and black / white. Organic & inorganic with danger alarms. 7. Printing image function. Operator's training program (OTP). Optional: network ready.
Technical data: Inspection tunnel size: 600 mm (W) × 400 mm (H), optional: Inspection tunnel size: 615 mm (W) × 415 mm (H). Conveyor speed: 22 cm / s forward or reverse. Conveyor maximum load: 170 kg evenly distributed load. Resolution ( metal wire): 41 AWG typical and 40 AWG standard. Wire resolution: Φ 0.1 mm copper wire. Steel penetration: 40 mm typical and 40 mm standard. Film safety: for ISO 1600. Multi-energy. Storage temperature: -20 ºC to +60 ºC. Operating temperature: 0 ºC to +45 ºC. Relative humidity: +10% to 95% non-condensing. Power wastage: 800 W ( maximum ). Noise: < 60 DB. Power supply: 110 ~ 220 VAC ( ±10% ), 50±3Hz. Optional: Input conveying length: 1000 mm; output conveying length: 2500 mm.
![](/en/eWebEdit/UploadFile/201652704133688.jpg)
X-ray generator: Orientation: vertically upward. Tube current: 0.5 ~ 1.2 mA ( adjustable ). Operation Anode voltage: 160 KV. Angle: 80 degree. Generator Cooling / Working periods: sealed oil bath with forced air of 100%. High penetration power to all metals. Optional: SX90A dual view system.
Image performance system: X-ray sensor: L type photo-diode array detector, 16 Bit. Monitor: high resolution 19" colour LCD monitor. Colour quality: 24 Bit real colours. Edge enhancement: object contour edge is more distinct and super image enhancement: image details are more distinct. Enlarging: function of enlargement image, high penetration strength display: can increase brightness of dark areas in the image to display an object, low penetration strength display: increase the contrast to display it distinctly. Dimming / brightening: increase brightness of image / decrease brightness of image. Image recurrence: can display previous twenty images & process any one of them. Image restoration: it can restore images to initial status at the time of stopping the conveyor. Image storage: real time to store any image and process it in operation status.
Zoom: Image enlargement to 32 times, optional: 64 times. Standard storage Image: 50,000 images, optional: 100,000 images. Contrast sensitivity: Min. 24 levels. Min. 4096 gray levels. Cycle operation: 100% without warm-up time. Image display: Min. 1280 x 1024, 24 bit /pixel colour. Computer specifications: Intel core 2 quad. 2.0 GB RAM, 500 GB HDD, 2.0 GB video card, dual digital display. Optiona: Core i7 with 8.0 GB RAM. Optional: windows XP pro.. Optional: uninterrupted power supply (UPS).
Multi-energy function: 1. Multi-energy color: display organic material for orange, display inorganic material for blue and display mixture material for green 2. High energy / low energy: it can display two energy type, high energy stands for metal etc. & low energy stands for nonmetallic. Assistant inspection functions of drugs and explosives: help to detect such dangerous materials as drugs and explosives, etc.
Technical standards: 1. Conform to EN 60950-1:2006+A2:2013 product safety international standard. 2. Conform to EN 61010-1:2010 product safety international standards. 3. Conform to EN55011:2016 product safety international standard, conform to EN61000-6-2:2005 product immunity international standard. 4. Conform to EN61000-3-2:2014 and EN61000-3-3:2013 product safety international standards. 5. European CE and EMC international security standard certificates. Conform to FAA 3-gun testing standards and NILECJ-0601-00 safety standards. Conform to ECAC international security standard. Conform to French civil aviation authority (STAC) standard, Civil Aviation Administration of China (CAAC) standard, U.S. A. Transportation Security Administration (TSA) standard and U.K. Department of Transport (DfT) security standard. |
