TX179 and TX178 medical x-ray scanner, portable x-ray scanner and x-ray inspection small parcel & baggage scanner as follows:

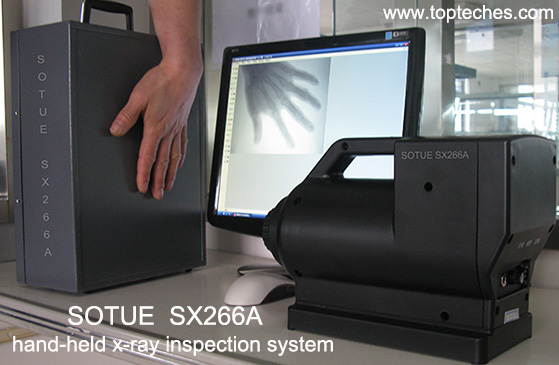

SOTUE SX266A hand-held x-ray inspection system
Application:
SOTUE SX266A portable x-ray inspection system (baggage scanner, medical x-ray scanner) is used for explosive & suspicious dangerous goods inspection, it can be installed in helicopters, police cars, etc., widely used in Customs, public security, troops, police, ambulances, post offices, jails and other security departments for explosion scene & postal parcel security checks and for bone-setting immediate medical diagnosis inspection etc..
It's used in medical inspection, Parcel and Baggage Security inspection and industrial inspection. SX266A products have been exported to Brazil, France, Nigeria, Spain, Germany, Nepal, Vietnam, the United States, Congo, Kenya, Russia, Thailand, Iraq, India, Italy, Malaysia, Indonesia & Turkey for the local customers' uses, we have provided design and OEM production for some customers in the United States, Japan and Europe for more than 15 years.
Function:
1. Software platform, easy to operate it. Multi-function image processing system. Image database to facilitate storage and retrieval.
Battery is applicable to a variety of working environment. Rechargeable battery, 220V and a car cigarette lighter power supply can work. Small size, strong penetration force & long life. Data transmission network to facilitate the exchange of information (optional).
2. Software:
Image enhancement, contrast adjustment, image overlay and adjust the brightness contrast. Image to be enlarge & reduced. Deal with the image part to be enlarged and narrowed.
Database to store images, pseudo color and microwave processing. Image to be fronted and reversed, image profile to be processed. It can provide outstanding threat detection and can show the threat image projection.
Technical data:
1. X-ray dose: 3 mR per pulse, every pulse can penetrate 50 mm thick aluminum plate or 5 mm thick steel plate (distance ≥ 300 mm).
2. X-ray sources: 6.5 Kg. Image Acquisition: 3.0 Kg. Resolution: 768 x 512. Pixels: 0.6 ~ 0.7. Pulse width: 100 ns. Bit rate: 8 Bits. Image acquisition size: 200 mm x 270 mm. Visual field: 260 mm x 350 mm.
3. Pulsed light: 1 ~ 5 times /second. Output voltage: 80 ~ 150KV. Power supply: 29V rechargeable battery or power supply: 110V, 220V (±10%), 50/60Hz.
4. X-ray dose conforms to Chinese National Standard: GB9706.12, it is safe to healthy human.
Technical standards:
1. Conform to EN 60950-1:2006+A2:2013 product safety international standard. 2. Conform to EN 61010-1:2010 product safety international standards. 3. Conform to EN55011:2016 product safety international standard, conform to EN61000-6-2:2005 product immunity international standard. 4. Conform to EN61000-3-2:2014 and EN61000-3-3:2013 product safety international standards. 5. European CE and EMC international security standard certificates. Conform to FAA 3-gun testing standards and NILECJ-0601-00 safety standards. Conform to ECAC international security standard.

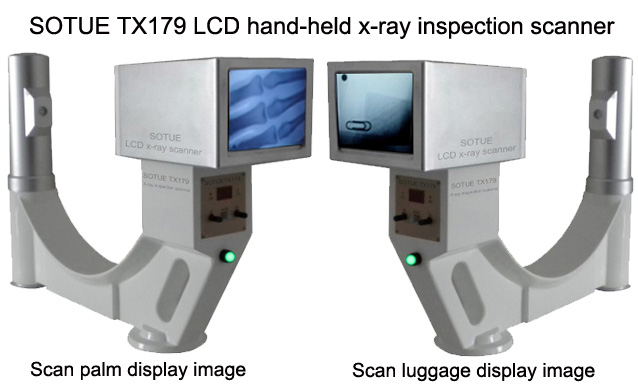

TECOS TX179 LCD hand-held x-ray inspection scanner
TECOS TX179 LCD hand-held x-ray screening inspection scanner is a new type of x-ray medical scanner and parcel & baggage scanner in the world. It is safe and no harm to human. We adopted MCP - X-Ray image strengthening technology, and it has high discrimination and high resolution capacities, this device can produce clear real-time images without darkroom.
TX179 scanner device's operation is very simple and easy. You will only make it connect to your power supply, then you will press the " START " button, it will begin to work, you will use it to scan your objects, then TX179 scanner' screen clearly displays suspicious images.
TX179 product has been exported to Congo, Syria, Lybia, Egypt, South Africa, Kenya, Nigeria, Malaysia, Vietnam, Brazil, Spain, Turkey, Iraq, Indonesia, India, Italy and Russia. We have provided its OEM products for our customers of Japan, the United States and Europe for many years.
Application:
TX179 scanner takes strict precautions and the operators don't need any protections and training, it conforms to ISO9001:2015 international quality control standard procedures.
Medical inspection: it is widely used in pediatrics, dentistry, hospital orthopedic & foot surgery and other departments, and is widely used for the immediate diagnosis in the emergency ward and simple surgery, also used for diagnosis of childbearing age women and birth control ring inspection in hospitals and for the inspection of athletes.
Industrial inspection: especially, it applies to various field rescues, such as: industrial materials and apparatus quality inspection, harmless inspection to aluminum casting, alloy casting, electronic integration piece and high voltage bundle, and so on.
Security inspection: widely used in fieldworks, supermarkets, companies, private places, VIP places / meetings, government departments, security departments, armies, customs and mail departments to inspect small parcels, hand-held baggages, etc.. It can provide outstanding threat detection and can show the threat image projection.
Technical data:
Output image size: 100 mm (W) x 75 mm (H). LCD display image, OPTIONAL: it can be connected to a computer or a monitor for watching.
Survey thickness: ≤ 320 mm, Ratio: ≥ 4%. X-Ray tube voltage: 50 ~ 90KV continual adjustment. Gray level: ≥ 10 level.
Voltage accuracy: ≤ ±1%. Current accuracy: ≤ ±2%. Releasing current: 1A. Temperature: -10 ℃ ~ 50 ℃. Resistance maximum: 0.5. Resolution: ≥ 40LP/cm. Tube current: 0.2 ~ 0.5mA continual adjustment. Main engine working frequency: 20 KHz. Opposite humidity: ≤ 80%. Conform to Chinese National Standard: GB9706.12.
Power supply: 110V ~ 220V (±10%), 50 ~ 60Hz. Power consumption: 80W. Dimension: about: 550 mm (L) x 350 mm (W) x 200 mm (H). Weight: about 9.5Kg
Technical standards:
1. Conform to EN 60950-1:2006+A11:2009 international product safety standard. Conform to EN 61010-1:2001 international product safety standard.
2. Conform to EN55011:2009 international product safety standard, conform to EN61000-6-2:2005 international product immunity standard.
3. Conform to EN 60601-1:2006 international medical device safety standard. Conform to EN 60601-1-2:2007 international medical device emission and immunity safety standards.

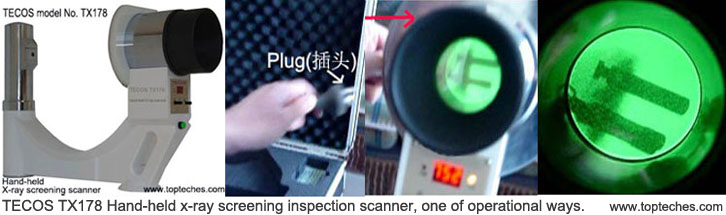

TECOS TX178 hand-held x-ray inspection scanner
TECOS TX178 hand-held x-ray screening inspection device is a new type of x-ray medical instrument in the world and consists of main engine & power supply. This product has been exported to South Africa, Kenya, Malaysia, Vietnam, Thailand, Indonesia, India, Brazil, Turkey, Italy, England, Iraq, Nigeria & Spain. We have provided OEM products for our customers of Japan, the United States and Europe for many years.
Application:
In addition, the device takes strict precautions and the operators don't need any protections, it is widely used in pediatrics, dentistry, hospital orthopedic & foot surgery and other departments, and widely used for the immediate diagnosis in the emergency ward and simple surgery, and also used for diagnosis of childbearing age women and birth control ring inspection in hospitals.
Especially, it applies to various field rescues such as:
1. Industry materials & apparatus quality inspection: No harm inspection to aluminum casting, alloy casting, electronic integration piece, high voltage bundle and so on.
2. Medical inspection: Athletes, armies, field work, clinics, animal hospitals, etc..
3. Security inspection: security departments, customs and mail departments to inspect small parcels, hand-held baggages and so on.
Features:
Because of adopting MCP - X-Ray imagine strengthening device, having compact structure and high discrimination, the device can produce clear real-time images without darkroom.
The advanced technology of widening pulse is used to control electrical appliance of X-Ray tube, which has many measures to be protected, it has high working stability and no noises. It can provide outstanding threat detection and can show the threat image projection.
Technical data:
Output image size: Φ75mm. Survey thickness: ≤ 320mm, Ratio: ≥ 4%. X-Ray tube voltage: 50 ~ 90KV continual adjustment. Gray level: ≥ 10 level. Voltage accuracy: ≤ ±1%.
Current accuracy: ≤ ±2%. Temperature: 5 ℃ ~ 40 ℃. Resistance maximum: 0.5. Resolution: ≥ 40LP/cm. Tube current: 0.2~0.5mA continual adjustment.
Main engine working frequency: 20 KHz.Opposite humidity: ≤ 80%. Radiation leakage: National Standard: GB9706.12. Power supply: 110V ~ 220V(±10%), 50/60Hz. Power consumption: 80W. Releasing current machine: 1A.
Size: about: 550 mm (L) x 420 mm (W) x 130 mm (H). Main engine: about 6.3 Kg. Gross weight:about 9 Kg.
Technical standards:
1. Conform to EN 60950-1:2006+A11:2009 international product safety standard. Conform to EN 61010-1:2001 international product safety standard. 2. Conform to EN55011:2009 international product safety standard, conform to EN61000-6-2:2005 international product immunity standard. 3. Conform to EN 60601-1:2006 international medical device safety standard. Conform to EN 60601-1-2:2007 international medical device emission and immunity safety standards. |
