SOTUE MCR819M military manpack communication radio station and ST3889D combat mechanical dog as follows:

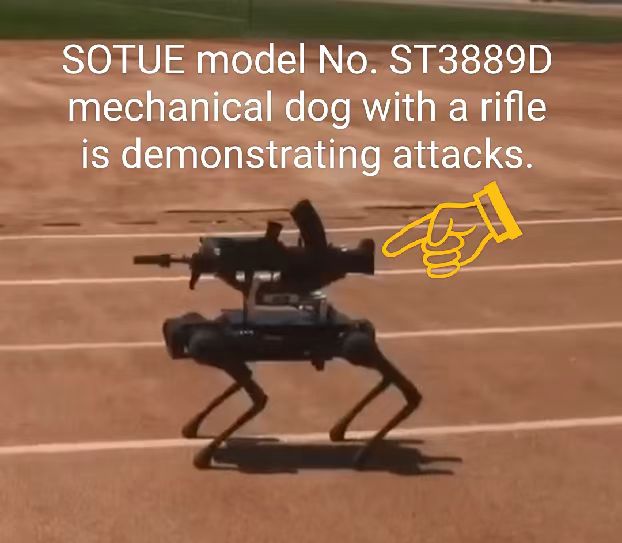

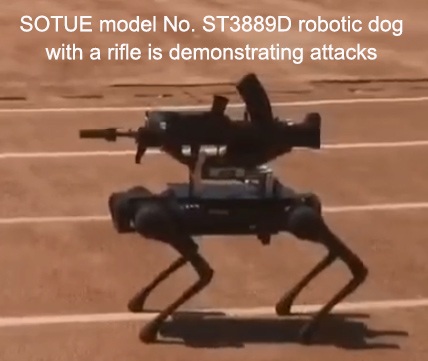

SOTUE ST3889D mechanical dog with rifle for attacks
Application:
ST3889D mechanical dog with rifle (The rifle and bullets will be purchased by the customer in his / her country) adopts military quality technology design and supports a vehicle deployment and a single soldier deployment or cluster deployment attacks, it is widely used in battle, rescue, counter-terrorism, guard security and other fields.
Feature:
Product colors of factory standard: black, blue, grey and silver.
The rifle can be installed upwards or downwards according to factory standards.
Optional: The 191 rifle or 95-1 rifle can be installed for attacks.
Optional: The AK-47 rifle can be installed for attacks.
Technical data:
Wireless remote control distance: about 100 meters.
The controller load of the mechanical dog ≤ 10 kg bullet drum.
Standing dimensions: approximately 1,100 mm x 448 mm x 646 mm excluding rifle controller.
Folding size: approximately 879 mm x 461 mm x 328 mm excluding rifle controller.
Weight: Approximately 60 kg (whole machine, including battery but excluding rifle controller).
Battery capacity: 45 An (2,250 W/H).
Voltage: 58 V.
Comprehensive operation range: 4 ~ 6 hours.
Range: continuous walk for more than 5 hours without load, and range mileage>20 km.
Continuous walk with a load of 20 kg for more than 4 hours, and range mileage is more than 15 km.
Optional: Replace the wheel feet.
Standing load: maximum 120 kg.
Continuous walk load>40 kg.
Staircase walk ability: the maximum step height is 20 ~ 25 cm.
Climbing ability: climb up-and-down steps of a height of 40 cm.
Slope walk ability: ≥ 45 °.
Work temperature: -20 °C ~ 55 °C.
Running speed: > 6 m/s.
Jumping a deep trench width: 0.5~1.2 meters.
Maximum long jump distance:>1.6 meters.
Protection level: IP 67.
Control and perception of computing power:
intel Core i5, optional: intel Core i7.
Optional: Nvidia Jetson Orin NX x 1 (different configurations may vary).
Perception sensor configuration:
3D LiDAR (Laser radar) x 1 + depth camera x 2 + optical camera x 2 (different configurations may vary), optional: thermal imaging camera.
1000 M-Base-Ethernet x 4.
USB 3.0 x 4, 12 V x 4, 5 V x 1.
External interface: 24 V x 4, BAT x 1.
Power supply: 110 V ~ 220 V (± 10%), 50 / 60Hz.
Technical standards:
1. Conform to EN 60950-1:2006+A2:2013 product safety international standard.
2. Conform to EN 61010-1:2010 product safety international standards.
3. Conform to EN55011:2016 product safety international standard.
4. Conform to EN61000-3-2:2014 product safety international standard.
5. European CE and EMC international security standard certificates.
SOTUE MCR819M military manpack communication radio station
Application:
MCR819M radio device adopts military quality technology design and supports a vehicle deployment and a single soldier backpack deployment, it is widely used in battle, rescue, counter-terrorism, security and other fields. It is a Military backpack radio station.
Function:
1. This device has a power-up password and channel password settings.
2. It has the function of encrypting the voice transmitted through the communication channel.
3. GPS positioning accuracy: Horizontal positioning accuracy ≤ 10 meters (under good signal conditions).
 4. TTFF (first positioning) cold start:<1 minute (under good signal conditions).
5. TTFF (first positioning) hot start:<10 seconds (under good signal conditions).
6. IP67: Waterproof. DSP processing. Its call effect is good and clear.
7. Optional local phone function: buy a local mobile phone card to installation to dial a mobile phone and telephone, please inform us before your purchase about it.
Technical data:
1. Total number of channels: 3776. Channel interval: 12.5KHz / 25KHz.
2. Wireless communication distance: 5 ~ 10 kilometers (no interference, open and unobstructed environment, it depends on the actual environment).
3. Vehicular usage: DC, 13.8 V (± 15%). Manpack usage: DC, 10.8 ~ 12.6 V.
The battery work time: approximately 6 hours. Battery capacity 16.5A.
4. Battery: can be independently charged with a dedicated charging adapter.
Charging voltage: AC 110V ~ 220V (± 15%).
5. Dimension: 301 mm (L) x 217 mm (W) x 75 mm (H) (excluding antenna and antenna base).
6. Weight: ≤ 5 kgs (including a battery).
7. Output power: 15W (3~15W continuous transmission) for manpack type.
Optional output power: 25W (5 ~ 25W continuous transmission) for vehicular usage.
8. Sensitivity: 3% BER ≤ 0.35 μV
9. Work temperature range: -30 ℃ ~ +70 ℃.
10. Storage temperature range: -40 ℃ ~ +85 ℃.
11. Anti-impact and anti-vibration: According to MIL-STD-810C/D/E/F standard.
Technical standards:
1. Conform to EN 60950-1:2006+A2:2013 product safety international standard.
2. European CE and EMC international safety standard certificates.
|
