SE8150 conveyor type metal detector, industrial metal detectors, conveyor type food metal detector as follows:

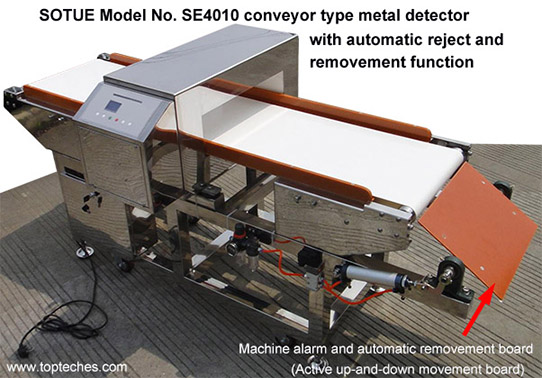

           SOTUE SE4010 conveyor type metal detector with automatic reject and removement function

Application:
SOTUE SE4010 tunnel type industrial metal detector ( food metal detector ) is designed for the use of toy, food and pharmaceutical industries and so on. Stainless steel frame. Optional: This industrial metal detector can be custom-made.
It has the automatic reject and removement system function independently, it can independently work in any place.

Feature:
Have an extremely high detection sensitivity and anti-jamming ability, excellent performances, for the detection of food industry and other high demand product industry. Mainly for the detection of food, toys and plastics industries, it can be used to detect lead, the broken needles, wire, copper, aluminum, tin, stainless steel and other metals that they are lost or mixed into raw materials or products,

1. It can detect non-ferrous metals and iron impurities, has the high detection sensitivity for ferrous & non-ferrous metal detection. It can be adjusted ,very easy to operate it. About food, it can detect wet or dry or sugar food and the packaged food. Attention: food includes vegetable, bread, moon cake, ice cream, meat, chocolate and so on. In meat food, it can detect Australian lobster, Fish ball, Dim sum, Abalone, Shark fin, Geoduck and so on.



2. The conveyor belt and pallet are made from white nonpoisonous materials, these materials accord to the U.S.A. " FDA " standard. Its detection accuracy exceeds the corresponding detecting guideline stated by the HACCP system.

3. When a metal is found, this machine gives out an alert sound and light alarm, at the same time, this machine automatically rejects and removes this metal or goods packing ( alarm objects ), its operation is extremely easy, flexible and reliable. It can connect to the production line for use to carry out automatical inspection products.

Technical data:
Power supply: AC 110V ~ 220V (±10%), or 380V, 56 ~ 60Hz.
Tunnel detection width: 400 mm. Tunnel detection height: 100 mm, Detection ability: FeΦ 0.6~0.8 mm.

Optional: Tunnel detection width: 300 mm, 400 mm, 500 mm, 600 mm, 800 mm, 1000 mm, 1100 mm, 1500 mm, 1600 mm, 1800 mm and 2100 mm.

Optional: Tunnel detection height: 100 mm, 120 mm, 150 mm, 200 mm, 300 mm, 400 mm, 500 mm and 600 mm.

Technical standards:
1. Conform to EN 60950-1:2006+A11:2009 international product safety standard. 2. Conform to EN 61000-3-2:2006+A2:2009 and EN61000-3-3:2008 international product safety standards. Conform to EN61000-6-1:2007 international product immunity standard. Radiation conforms to EN61000-6-3:2007 international product emission standard.

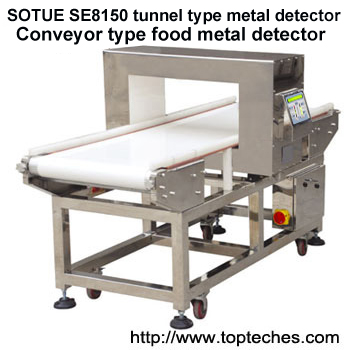

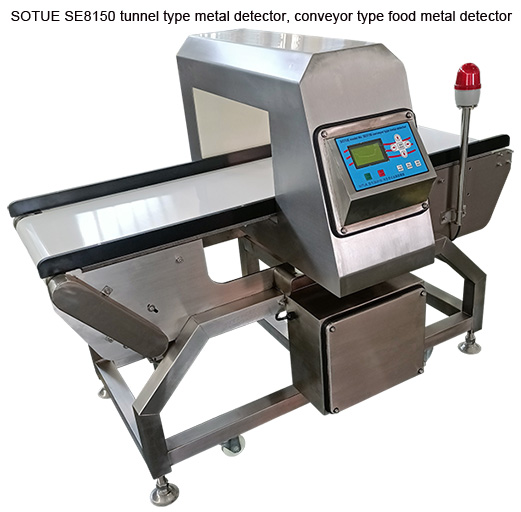

                SOTUE SE8150 tunnel type industrial metal detector, conveyor type food metal detector

(Height & width of detection tunnel size can be custom-made, its highest detection sensitivity: sphere diameter FeΦ≥0.6 ~ 0.8 mm)

Application:
SOTUE SE series tunnel conveyor type industrial metal detectors (food metal detectors) are designed for the use of toy, plastic, mining, food and pharmaceutical industries etc.. The detection accuracy of SOTUE metal detectors exceeds the corresponding detection guideline stated by the HACCP system. Stainless steel frame, (Optional: This industrial metal detector can be customized).

Feature:
With extremely high detection sensitivity and anti-jamming ability, excellent performances, for the detection of the highly demanding food industry and other high demand product industry. Mainly for the detection of food, toys and plastics industries, it can be used to detect the broken needles, wire, copper, lead, aluminum, tin, stainless steel and other metals that they are lost or mixed into raw materials or products.

1. It can detect non-ferrous metals and iron impurities, has the high detection sensitivity for ferrous & non-ferrous metal detection. It can be adjusted ,very easy to operate it. About food, it can detect wet or dry or sugar food and the packaged food. Attention: food includes vegetable, bread, moon cake, ice cream, meat, chocolate and so on. In meat food, it can detect Australian lobster, Fish ball, Dim sum, Abalone, Shark fin, Geoduck and so on.



2. The conveyor belt and pallet are made from white nonpoisonous materials, these materials accord to the U.S.A. " FDA " standard. The detection accuracy of SOTUE metal detectors exceeds the corresponding detecting guideline stated by the HACCP system.

3. When a metal is found, the device gives out sound and light alarm, at the same time, the device stops or pauses, a person finds and automatically removes alarm objects, its operation is extremely easy, flexible and reliable. It can connect with the product line for use to carry out automatical inspection of production.

Technical data:
Model No.: SE8150
Tunnel Height: 150 mm.
Tunnel Width: 500 mm.
Detection ability: FeΦ≥ 1.0 mm, SUSΦ≥ 2.0 mm.

Detection tunnel height                    Tunnel detection sensitivity
          100 mm                                          FeΦ≥0.8 mm, SUSΦ≥1.2 mm
          120 mm                                          FeΦ≥0.8 mm, SUSΦ≥1.5 mm
          150 mm                                          FeΦ≥1.0 mm, SUSΦ≥2.0 mm
          200 mm                                          FeΦ≥1.2 mm, SUSΦ≥2.5 mm
          250 mm                                          FeΦ≥1.5 mm, SUSΦ≥3.0 mm
          300 mm                                          FeΦ≥2.0 mm, SUSΦ≥3.5 mm

Power supply:  AC 110V ~ 220V (±10%), or 380V, 56-60Hz.

( Optional: Tunnel detection width: 200 mm, 300 mm, 400 mm, 500 mm, 600 mm, 700 mm, 800 mm, 900 mm, 1000 mm, 1100 mm, 1300 mm and 2100 mm for your selection ).

( Optional: Tunnel detection height: 120 mm, 150 mm, 200 mm, 250 mm, 300 mm, 350 mm, 400 mm, 450 mm, 500 mm, 550 mm, 600 mm, 700 mm, 800 mm, 1000 mm and 1200 mm for your selection ).

Technical standards:
1. Conform to EN 60950-1:2006+A11:2009 international product safety standard. 2. Conform to EN 61000-3-2:2006+A2:2009 and EN61000-3-3:2008 international product safety standards. Conform to EN61000-6-1:2007 international product immunity standard. Radiation conforms to EN61000-6-3:2007 international product emission standard.
