• Multi-zone alarm walk-through metal detector, walk-through scan body temperature and metal detector with a camera and a computer
• Tunnel conveyor type x-ray inspection parcel, baggage & pallet cargo system, truck/container x-ray screening system, portable medical x-ray and baggage scanner
• Conveyor type metal detector which inspects pharmaceuticals & food products packaged with aluminum foil. Hand-held & conveyor type needle detector / needle detector with two detection heads
• Underground metal and gold detector, hand-held metal detector, conveyor type industrial and food metal detector, inspection shoe metal detector
• Patrol clock and guard patrol system, binocular military telescope, aim telescope, aircraft pod, thermal imaging camera
• Drug & bomb detector, liquid explosives detector, chemical warfare agent and radioactive substance detector, bomb jammer, phone GPS VHF UHF UAV jammer, search mirror & vehicle underside search system
• Conveyor tunnel type mining metal detector head, food & industrial metal detector head
• Weaponized drone and surveillance UAV, Combat Robotic Dog, Bulletproof Vest and Helmet, Military Anti-thermal Imaging & Anti-infrared camouflage Clothes, Rinse drone, Manpack Radio Station, Pager
Gold detector, hand-held metal detector, airport metal detector, inspection shoe metal detector

Underground metal detector & underground gold and landmine detector, please visit: http://www.topteches.com/en/html/html_128.html , SS663D inspection shoe metal detector as follows:

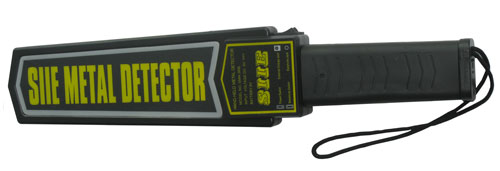

            SIIE SMH-368L high sensitive hand-held metal detector, hand-held gold & silver metal detector

Application:
SMH-368L high sensitive hand-held metal detector can detect persons, hand luggage, mail and parcel and so on, can detect all kinds of alloy, is able to locate a needle or minimum metal at a close distance & to locate IED-device, ammunition, bombs, weapons, parts of weapons, explosives in metal covers etc.. It is widely used in airport, court, prison, customhouse, exhibition site, church, embassy, bank, factory, amusement place and so on for loss prevention and security inspection. It can detect and find drugs and narcotics packed with Tin Foil paper.

It is also possible to find and locate these objects like the camouflaged mines, electronic igniting mines and plastic mines which contain metal articles, it can eliminate the ground effects sufficiently. Conform to all current international security standards.

Feature:
Ergonomic design. Have with LED alarm, vibration alarm or acoustic signal alarm. Alarm ways: red LED light signaling and vibration signal or red LED light signaling and acoustic signal. When its battery is the lowest level, warning lamp LED will alert, (need a replacement battery). It has a de-sense button and can tightly control detection pattern to allow the efficient weapon screening near floors containing rebar.

The device can detect objects with iron composition, non-iron and other objects. Self-calibration: It can provide a scanning area with 360 ° coverage and scan from head to feet.

Normal use: a 9V dry battery. (Add cost) optional: a 9V rechargeable battery: it must use a standard 9V rechargeable battery that is included in the offer.

Technical data:
Operation voltage:           7V-9V. Low battery indicator.
Operation humidity:         0~95% without condensation. Operation temperature:  -20℃ to 60℃. Storing temperatures: -20℃ to 60℃.
Visual and sound:             LED Red Light (Alarm).  LED Green Light (Standby, Normally).

                                      Sound or Vibration and Red Light are simultaneous alarms
                                      Sound alarm: Speaker or Earphone, (Earphone attachment option).

Control units:                  ON / OFF Switch. Low sensitivity switch. Sensitivity adjuster (button). When detecting, automatic adjustment.
Detection distance:          Needle is detected. Pin: 20mm. 1 dollar RMB coin: 80 ~ 90mm. Small 77 Pistol: 160mm. Knife: 120 ~ 140mm.

Dimension of unit:           410 mm (L) x 86 mm (W) x 46 mm (H). Color: Black
Low sensitive switch:       Detector only responds to a bigger metal, optional: Can detect 0.3 ~ 0.5g gold flakes.
Weight of unit:                About 390g including a 9V battery.  Net weight: about 340g excluding a battery.
Attachment:                    Holster (Optional). Rechargeable battery (Optional). battery charger (Optional)

Technical standards:
1. Conform to EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 product safety international standard. Conform to EN 55011:2009+A1:2010 and EN 61326-1:2013 product safety international standards. Conform to EN61000-3-2:2014 and EN61000-3-3:2013 product safety international standards.

2. Conform to EN 61000-6-1:2007 product immunity international standard and radiation conforms to EN 61000-6-3:2007 +A1:2011+AC:2012 product emission international standard. Be harmless to pregnant women and magnetic recording materials.

3. Conform to U.S.A. FAA 3-gun testing standards and NILECJ-0601-00 safety standards. 4. European CE and EMC international security standard certificates, conform to ECAC international Security standard. Conform to U.S.A. Transportation Security Administration (TSA) standards. Conform to the standard Mil-Std-810F (drop test) Method 516.5, Procedure II and IV. Conform to CSA standard.



                                                 SOTUE SMH-368B hand-held metal detector

Application:
SMH-368B high sensitive hand-held metal detector can detect persons, hand luggage, mail and parcel etc., can detect all kinds of alloy, is able to locate a needle or minimum metal at a close distance, to locate IED-device, bombs, weapons, parts of weapons, explosives in metal covers etc..
It is widely used in airport, court, prison, customhouse, exhibition site, bank, church, embassy, factory, amusement place etc. for loss prevention and security inspection

Feature:
Ergonomic design. Have LED alarm, vibration alarm or acoustic signal alarm. When its battery is the lowest level, warning lamp LED will alert. Two grades: Low sensitivity and high sensitivity. Provide OEM production.

Technical data:
Power Supply: 9V dry battery,  optional: 9V Ni-MH battery with a charger. Indicator of a low battery.
Work time with Ni-MH battery: 40 hours max., optional with alkaline battery: 150 hours max.
Operating temperature: -25°C ~ 65°C.
Relative humidity: 0 ~ 95% without condensation.
dimension: 342 mm x 81 mm x 54 mm.
Detection distance:  a needle can be detected; 60 mm for 1 dollar RMB coin;
110 mm for a small 77 Pistol; 90 ~ 100 mm for a small knife.

Technical standards:
1. Conform to EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 product safety international standard. Conform to EN 55011:2009+A1:2010 and EN 61326-1:2013 product safety international standards. Conform to EN61000-3-2:2014 and EN61000-3-3:2013 product safety international standards. 2. Conform to EN 61000-6-1:2007 product immunity international standard and radiation conforms to EN 61000-6-3:2007 +A1:2011+AC:2012 product emission international standard. Be harmless to pregnant women and magnetic recording materials. 3. Conform to U.S.A. FAA 3-gun testing standards and NILECJ-0601-00 safety standards.


                                                 SOTUE SMH-368A hand-held metal detector

Application:
SMH-368A high sensitive hand-held metal detector can detect persons, hand luggage, mail and parcel etc., can detect all kinds of alloy, is able to locate a needle or minimum metal at a close distance, to locate IED-device, bombs, weapons, parts of weapons, explosives in metal covers etc..
It is widely used in airport, court, prison, customhouse, exhibition site, bank, church, embassy, factory, amusement place etc. for loss prevention and security inspection.

Feature:
Ergonomic design. Have LED alarm, vibration alarm or sound signal alarm. When its battery is the lowest level, a warning LED light will give an alarm. Three grades: Low sensitivity, normal sensitivity and high sensitivity (adjustable). Provide OEM production.

Technical data:
Power supply: 9V dry battery (standard). Indicator of a low battery.
Work time with alkaline battery: 100 hours max. with a charger.
Optional Lithium-ion battery: 300 hours max. with a charger.
Operating temperature: -20°C ~ 60°C.
Relative humidity: 0 ~ 95% without condensation.
dimension: 342 mm x 81 mm x 61 mm.
Detection distance:  a needle can be detected; 65 mm for 1 dollar RMB coin;
120 mm for a small 77 Pistol; 100 ~ 110 mm for a small knife.

Technical standards:
1. Conform to EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 product safety international standard. Conform to EN 55011:2009+A1:2010 and EN 61326-1:2013 product safety international standards. Conform to EN61000-3-2:2014 and EN61000-3-3:2013 product safety international standards. 2. Conform to EN 61000-6-1:2007 product immunity international standard and radiation conforms to EN 61000-6-3:2007 +A1:2011+AC:2012 product emission international standard. Be harmless to pregnant women and magnetic recording materials. 3. Conform to U.S.A. FAA 3-gun testing standards and NILECJ-0601-00 safety standards.

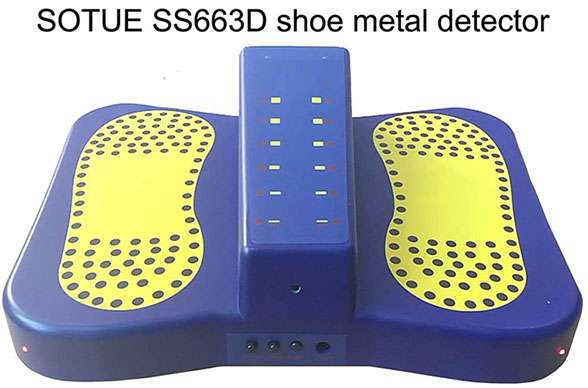

                                             SOTUE SS663D inspection shoe metal detector

Application:
The places which shoes are not easy to take off, SOTUE SS663D inspection shoe metal detector can quickly inspected dangerous articles which are hidden in shoes. Such as: blade, small saw blade, hairpin, all kinds of precious metals and so on. It can be used in conjunction with hand-held metal detectors for security inspection, it is widely used in airport, court, prison, customhouse, exhibition site, embassy, factory, amusement place and so on.

Feature:
1. sensitivity adjustment. can adjust the high or low sensitivity, can eliminate inherent metals (such as spikes ect.) in shoes.
2. sound and light alarm: when the metal is detected, the buzzer and the alarm lamp simultaneously give out alarms.
3. Left and right feet at the same time can be detected: by the alarm lamp display, you can distinguish which shoe is hiding metal. You can quickly finish the security inspection work.
4. Count function: display alarm count.



Technical data:
1. Operating temperature: - 5℃ ~ +55℃.
2. Working humidity: 5% ~ 95%RH.
3. Maximum load: 155kgs.
4. Net weight: 1.65kg
5. Detection Distance:
Distance of detection clip: 300 mm.
Distance of detection RMB one Coin: 40 mm.
Distance of Detecting art knife: 95 mm.
6. Size: Length 399 mm x width 378mm x height 99 mm.
7. Power supply: 110V~ 220V (±10%). 50 / 60Hz, DC 15V.

Technical standards:
1. Conform to EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 product safety international standard. Conform to EN 55011:2009+A1:2010 and EN 61326-1:2013 product safety international standards. Conform to EN61000-3-2:2014 & EN61000-3-3:2013 product safety international standards.
2. Conform to EN 61000-6-1:2007 product immunity international standard and radiation conforms to EN 61000-6-3:2007 +A1:2011+AC:2012 product emission international standard.
3. Conform to U.S.A. FAA 3-gun testing standards and NILECJ-0601-00 safety standards.
4. Conform to ECAC international Security standard. Conform to U.S.A. Transportation Security Administration (TSA) standard.
